Description

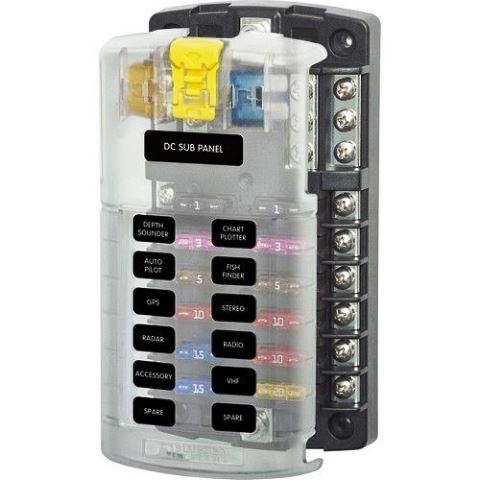

Use the Blue Sea Systems ST Blade Fuse Block to consolidate branch circuits and in-line fuses. Blue Sea's ST Blade Fuse Block offers a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel.
Features:
- Can be used for 24 hour circuits
- Includes ABYC/USCG approved cover with an easy to open push button latch
- Include 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO and ATC fast acting blade fuses
- Fuses sold separately
Specifications:
- Circuits: 12
- Maximum Amperage: 100A per block | 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Negative Bus: #10-32 Stud
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Screw Terminal Torque: 15 in-lb
