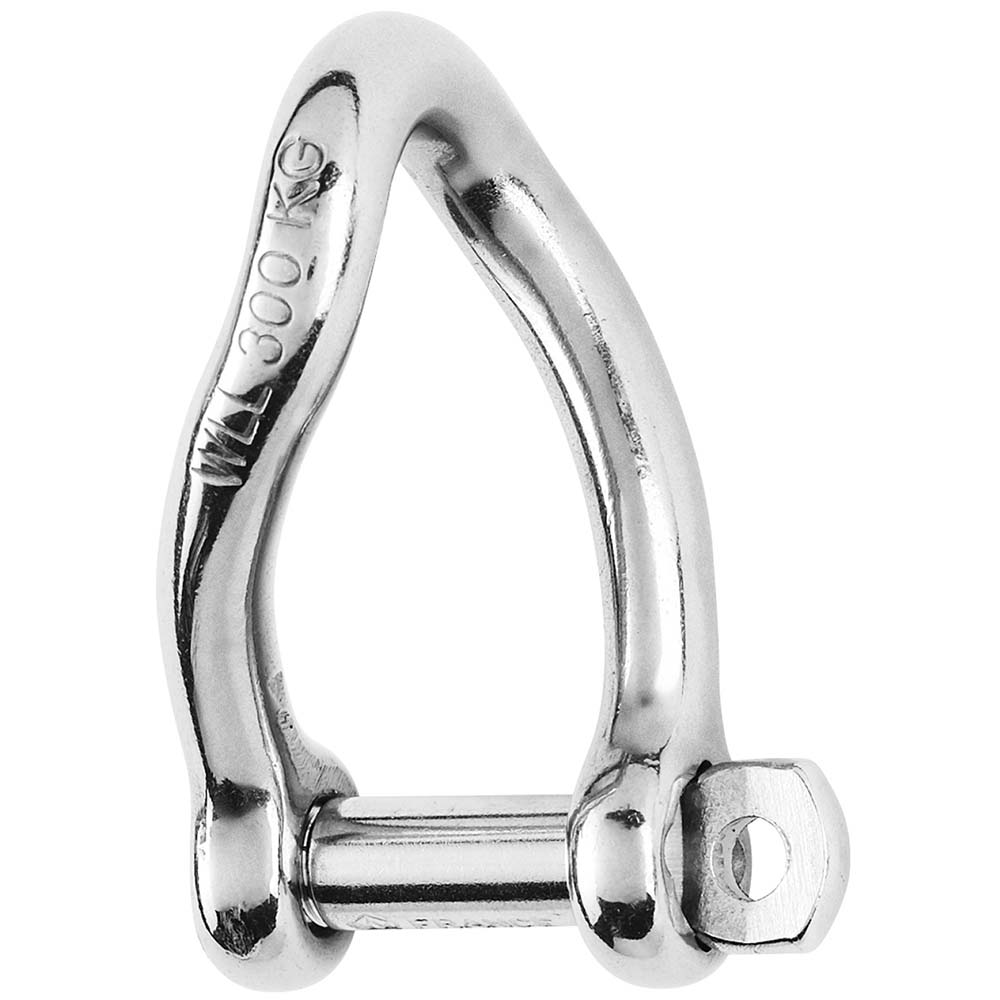

Wichard Self-Locking Twisted Shackle - Diameter 6mm - 1/4" [1223W]
- $27.91
-
Regular price
$32.84 -
-15%
- 3 available
Self-Locking Twisted Shackle - Diameter 6mm - 1/4"Features: Self-locking twisted shackle forged in grade 316L stainless steel The pin is...
Couldn't load pickup availability
Vendor: Wichard Marine
Type: Shackles/Rings/Pins
Sku: CWR-93100
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Wichard Self-Locking Twisted Shackle - Diameter 6mm - 1/4" [1223W]
$27.91
Self-Locking Twisted Shackle - Diameter 6mm - 1/4"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1320
- Breaking load (lb) 3300
- Weight (lb) 0.06

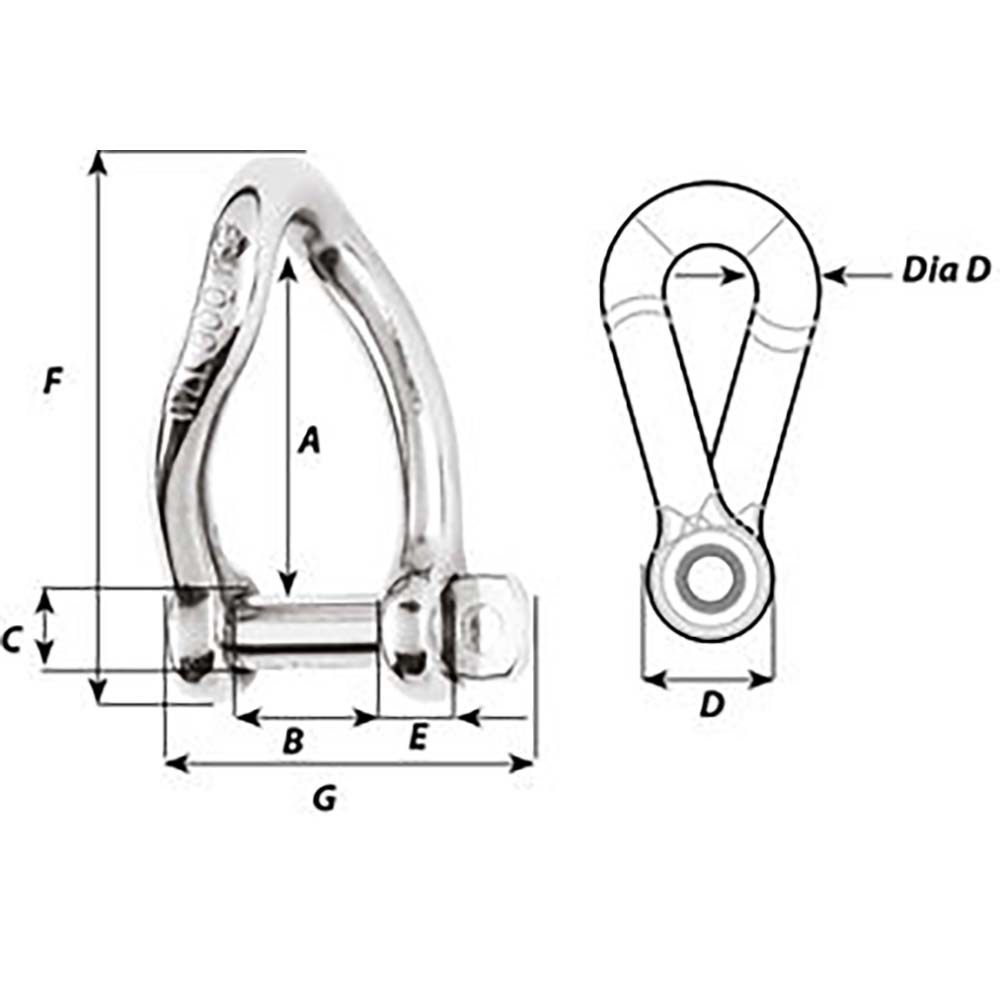

Dimensions (see 2nd page):
- A (inch) 1-3/16"
- B (inch) 15/32"
- C (inch) 15/64"
- D (inch) 15/32"
- D diameter (inch) 15/64"
- E (inch) 13/64"
- F (inch) 1-49/64"
