Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32" [1248W]
- $434.46
-
Regular price
$511.13 -
-15%
- 2 available
Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"Features: Bow shackle forged in grade 316L stainless steel The pin is...
Couldn't load pickup availability
Vendor: Wichard Marine
Type: Shackles/Rings/Pins
Sku: CWR-97634
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32" [1248W]
$434.46

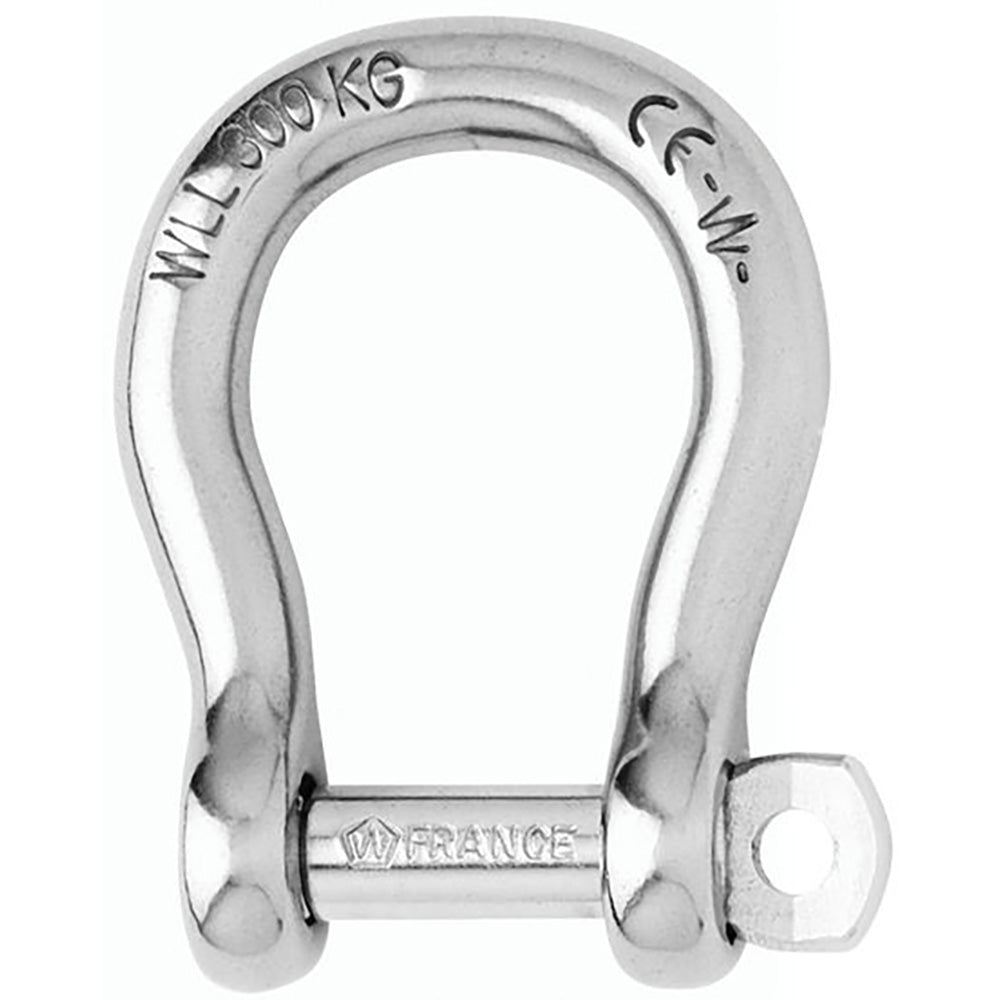

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"
Features:
- Bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Part # 01248 is not self-locking
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 9920 / (kg) 4500
- WLL: (lb) 6610 / (kg) 3000
- Breaking load: (lb) 33060 / (kg) 15000
- Weight: (lb) 2.328 / (kg) 1.056

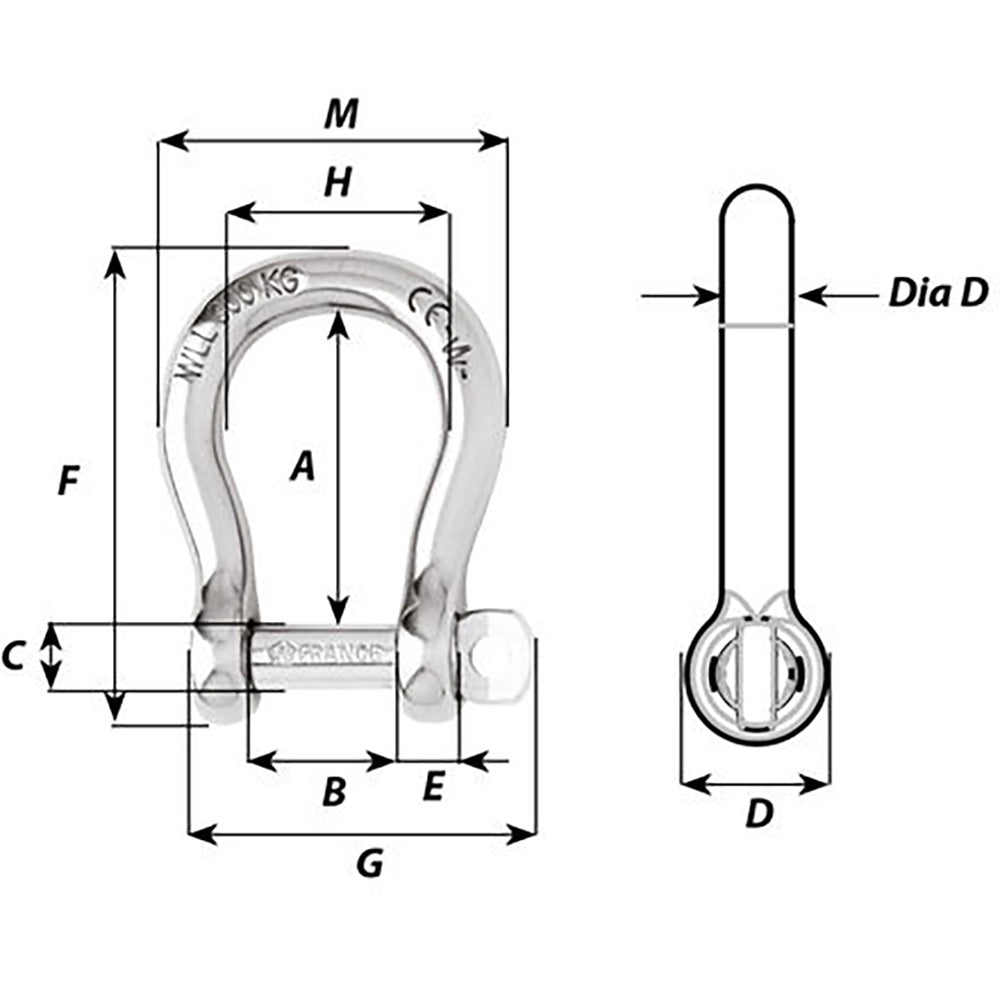

Dimensions:
- A: (inch) 3 5/32" / (mm) 80
- B: (inch) 1 37/64" / (mm) 40
- C: (inch) 25/32" / (mm) 20
- D: (inch) 1 37/64" / (mm) 40
- D diameter: (inch) 25/32" / (mm) 20
- E: (inch) 45/64" / (mm) 18
- M: (inch) 3 15/16" / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
