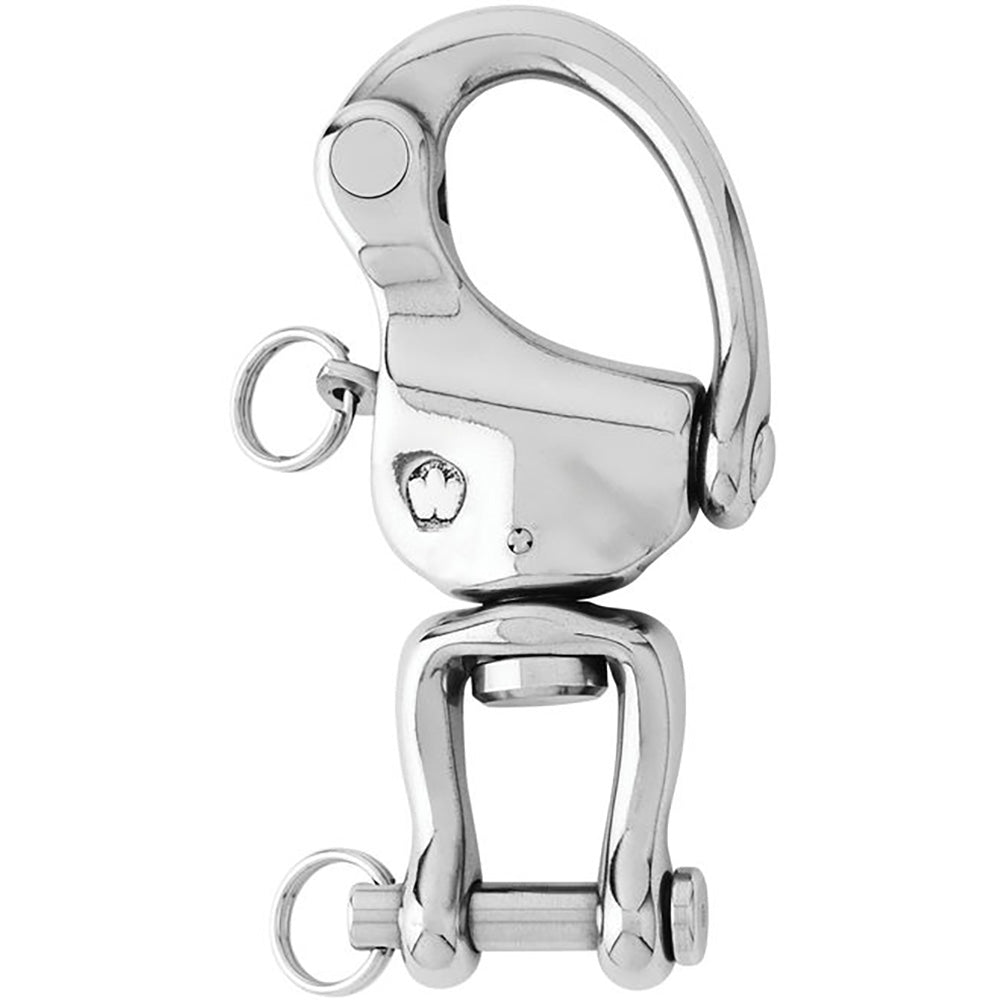

Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32" [2478W]
- $253.35
-
Regular price
$298.06 -
-15%
- 4 available
HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with...
Couldn't load pickup availability
Vendor: Wichard Marine
Type: Shackles/Rings/Pins
Sku: CWR-97656
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32" [2478W]
$253.35
HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.919 / (g) 417

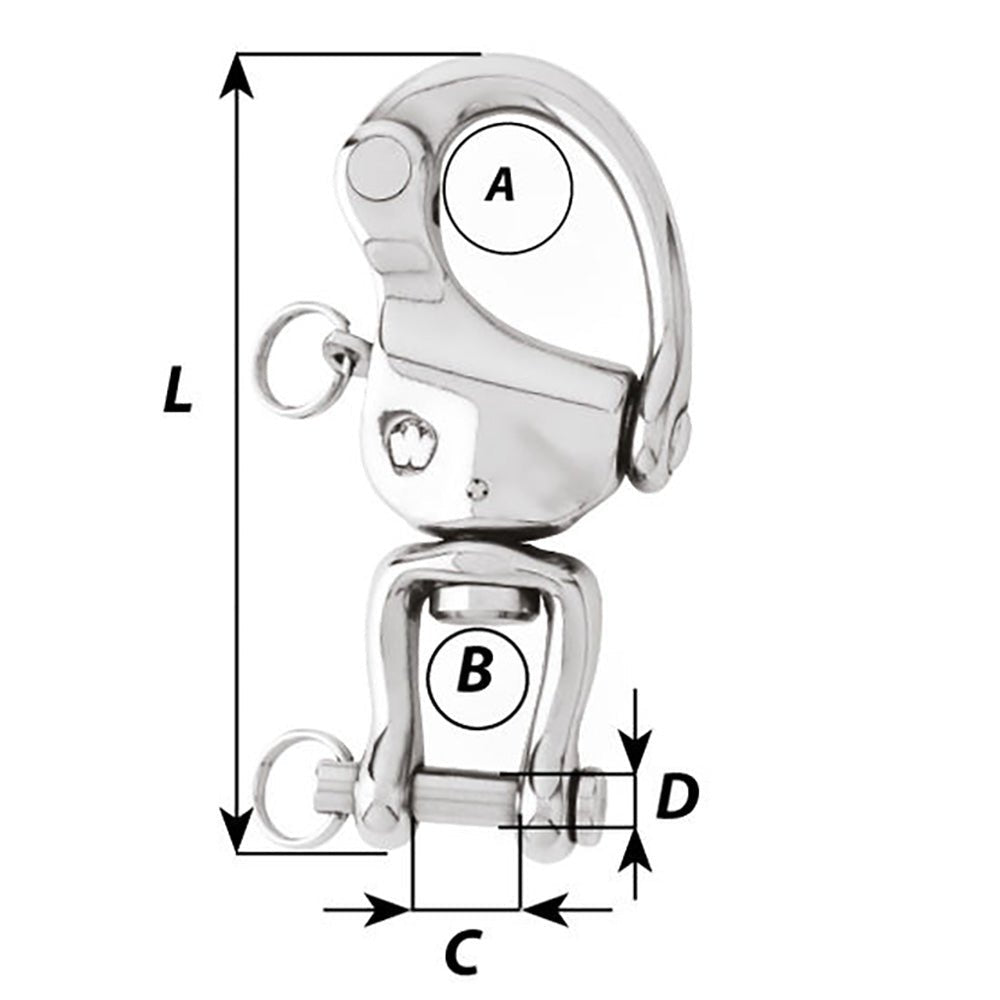

Dimensions:
- A: (inch) 1 1/32" / (mm) 26
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 45/64" / (mm) 18
- D diameter: (inch) 7/16" / (mm) 11
- Length: (inch) 4 23/32" / (mm) 120
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
