Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [2777W]
- $431.18
-
Regular price
$507.27 -
-14%
- 6 available
HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with...
Couldn't load pickup availability
Vendor: Wichard Marine
Type: Shackles/Rings/Pins
Sku: CWR-97666
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [2777W]
$431.18

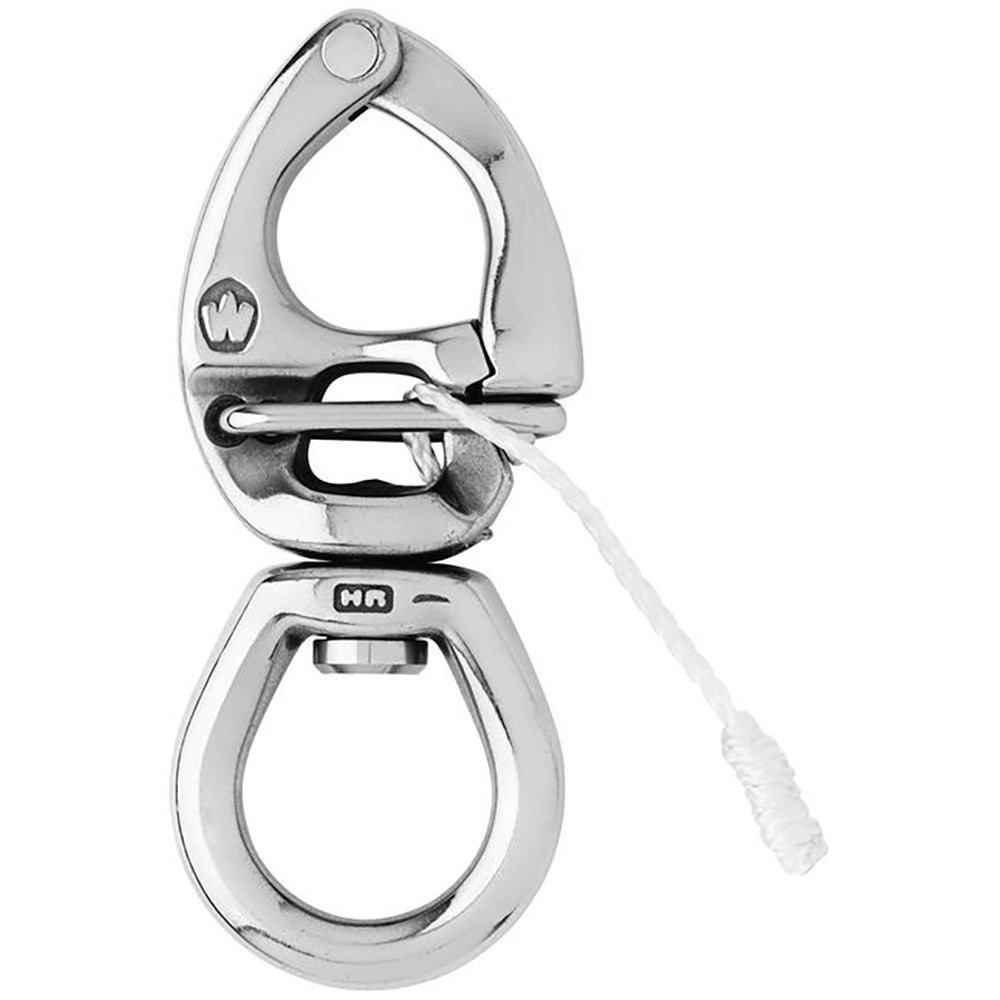

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 6170 / (kg) 2800
- Breaking load: (lb) 13880 / (kg) 6300
- Weight: (lb) 0.873 / (g) 396

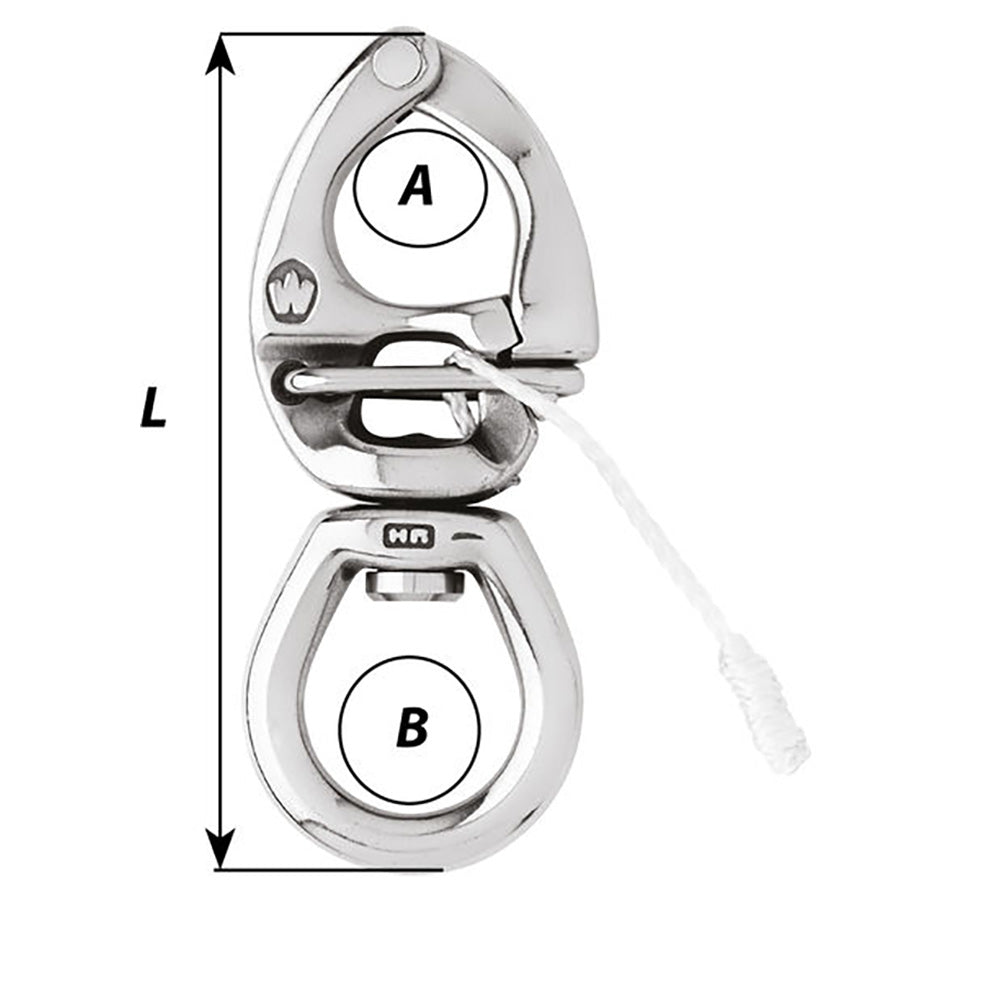

Dimensions:
- A: (inch) 1 3/16" / (mm) 30
- B: (inch) 1 25/64" / (mm) 35.5
- Length: (inch) 5 45/64" / (mm) 145
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
