Wichard Captive Pin D Shackle - Diameter 5mm - 3/16" [01402]

Save $3.96
SKU: CWR-93110

Price:
Sale price$22.44 Regular price$26.40

Description

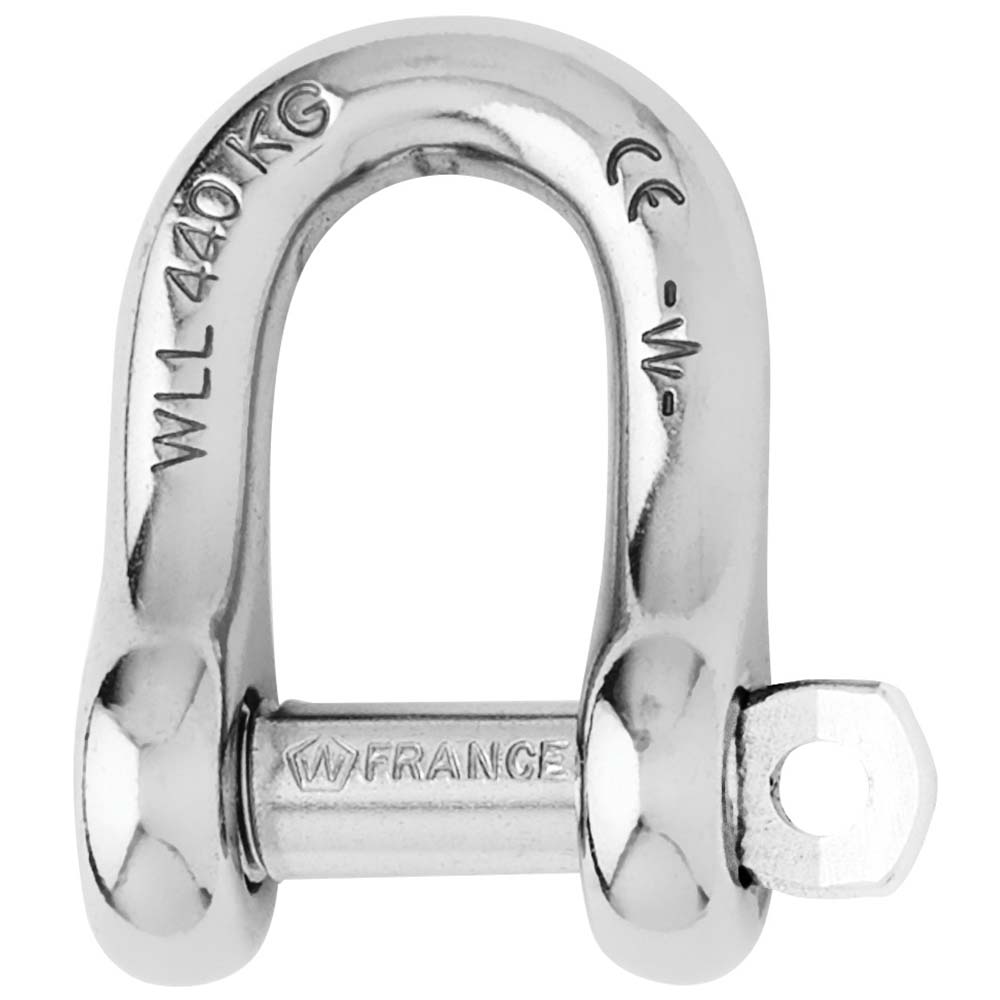

Captive Pin D Shackle - Diameter 5mm - 3/16"

Features:

  • Captive pin "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • WLL (lb) 660
  • Breaking load (lb) 3300
  • Weight (lb) 0.035

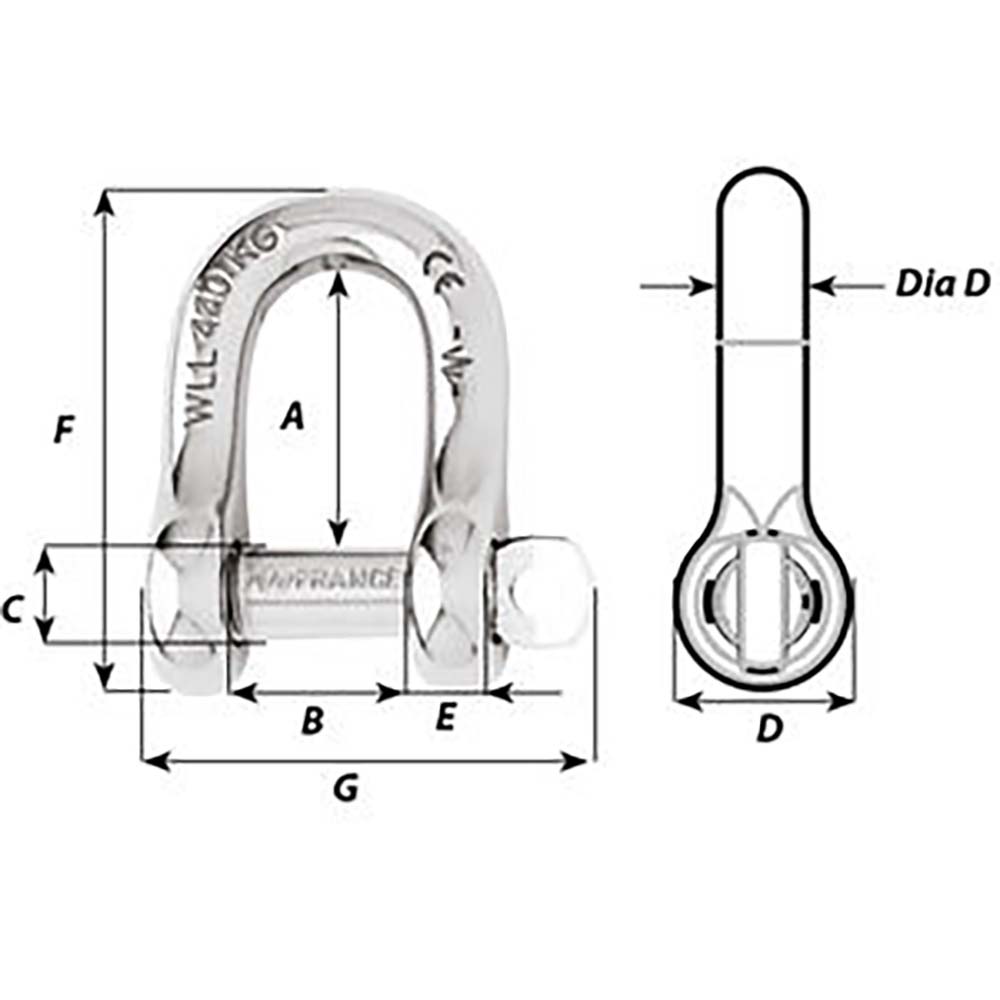

Dimensions (see 2nd image):

  • A (inch) 5/8"
  • B (inch) 25/64"
  • C (inch) 15/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • F (inch) 7/16"
  • G (inch) 1-3/16"
  • H (inch) 1-1/16"
