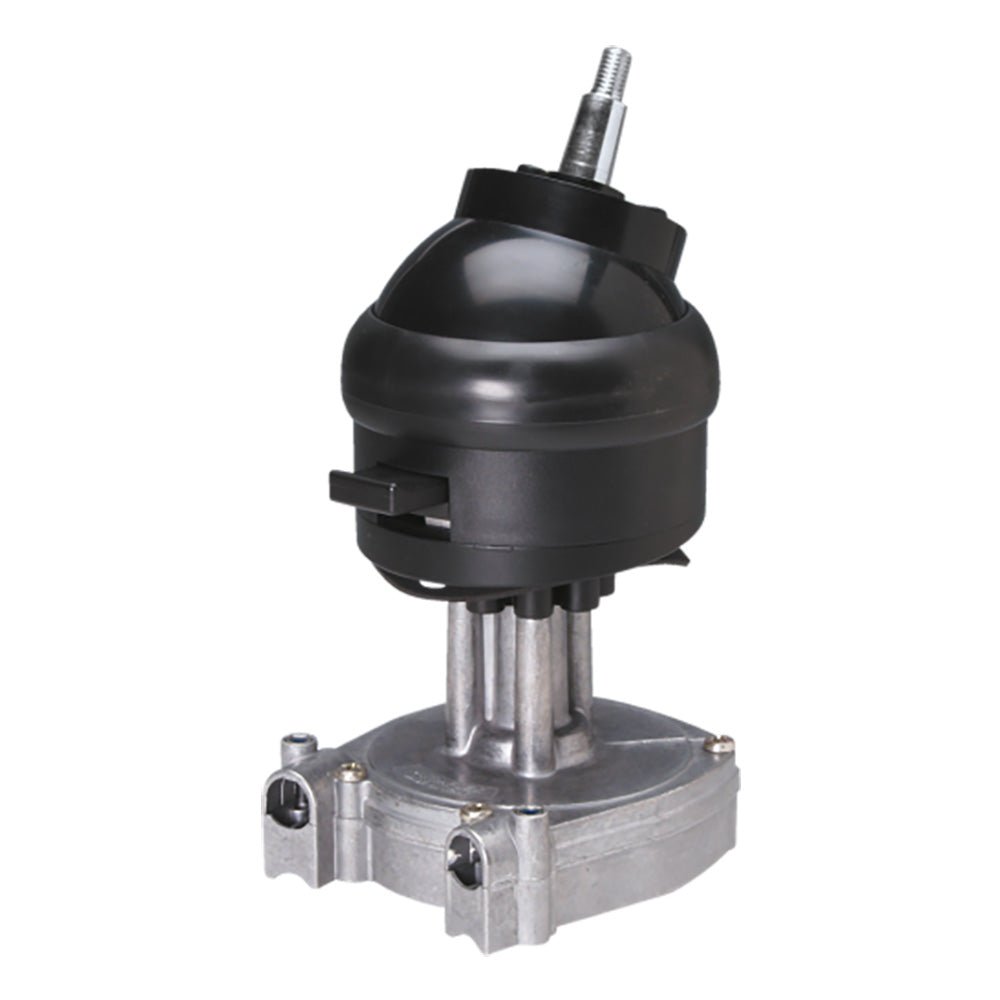

Uflex T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately [T83FC]
- $272.99
-
Regular price
$335.34 -
-18%
- 3 available
T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold SeparatelyT83FC has a tilt range of 48° and five...
Couldn't load pickup availability
Vendor: Uflex USA
Type: Steering Systems
Sku: CWR-103636
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Uflex T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately [T83FC]
$272.99
T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately
T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.
Features:
- X52 Tilt Mechanism sold separately
- Tilt range of 48° and five locking positions
- Fast connect, simple installation
- The tilt device eliminates under-dash movement
- Standard 3/4” tapered shaft – stainless steel
- All stainless steel cable output ends
- Corrosion resistant materials
- T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
- X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
- For boats faster than 50 mph, our hydraulic steering systems are recommended
- Optional steering wheel
- Engine connection kits
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
Specifications:
- M66 steering cable stroke: 228 mm (9")
- Lock-to-lock steering wheel turns: Approx. 3,8
- Max. dash depth: 25,4 mm (1")
- Max. steering wheel diameter: 406 mm (16")
- Min. steering cable bend radius: 200 mm (7.9")
*Tilt Mechanism Sold Separately
