![Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT]](http://houseboatparts.com/cdn/shop/files/99614XL.jpg?v=1685088209&width=1400)

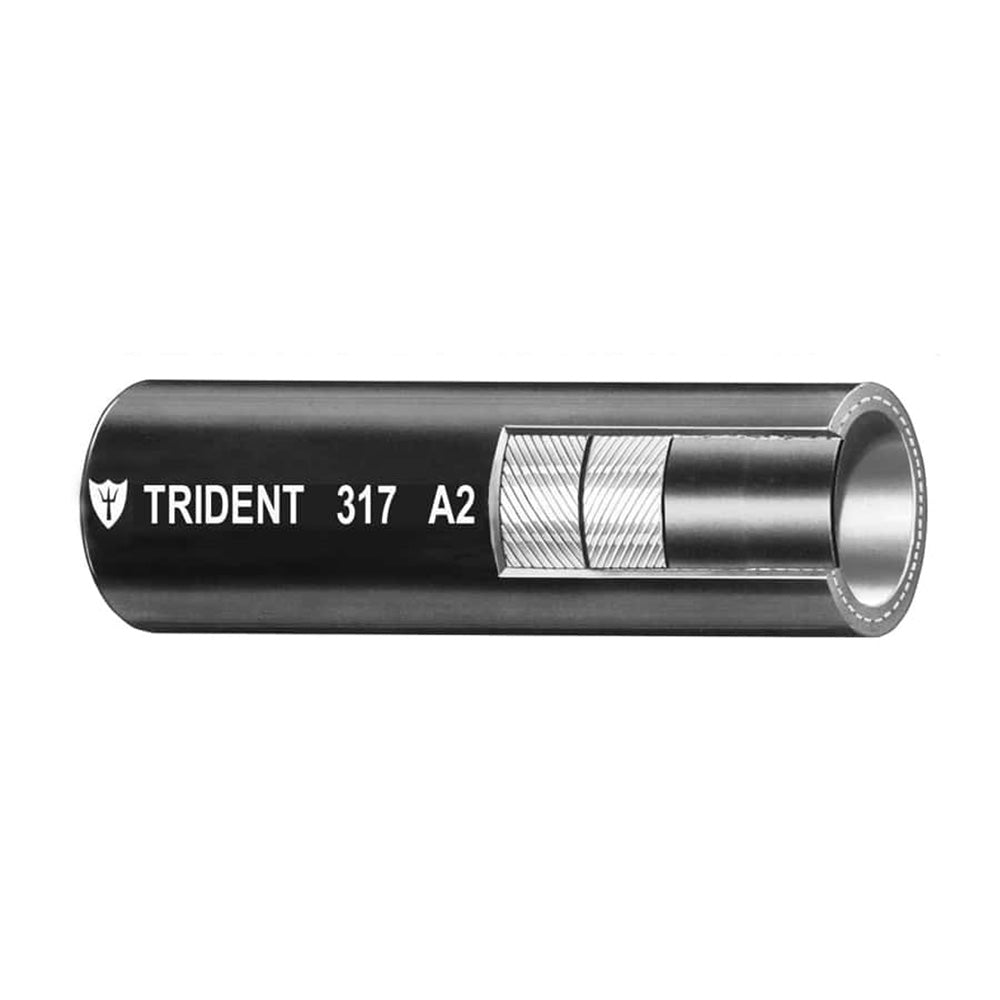

Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT]
- $6.99
-
Regular price
$9.99 -
-30%
5/8" Type A2 Fuel & Vent Line Hose - Black - Sold by the FootTrident 5/8” A2 Fuel Hose for...
Couldn't load pickup availability
Vendor: Trident Marine
Type: Fuel Hose & Fittings
Sku: CWR-99614
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT]
$6.99
5/8" Type A2 Fuel & Vent Line Hose - Black - Sold by the Foot
Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.
Features:
- Sold by the foot
- Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
- Also provides excellent bend-ability
- NMMA Type Accepted & CE certified
Applications:
- Fuel Hose for vent and diesel distribution
- For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel
Construction:
- Tube: Nylon Internal Barrier, NBR
- Cover: NBR/PVC Blend
- Reinforcement: Polyester 2 spiral
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
Specifications:
- Inner Diameter: (inch) 5/8" / (mm) 15.9
- Outer Diameter: (inch) 0.960 / (mm) 24.4
- Burst Pressure: (psi) 200 / (mpa) 1.38
- Working Pressure: (psi) 50 / (mpa) 0.34
- Bend Radius: (inch) 3" / (mm) 76.2
- Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72
*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- ID Diameter (inches): 5/8"
- Length (Feet): Sold By The Foot
- Box Dimensions: 1"H x 1"W x 1"L WT: 0.27 lbs
