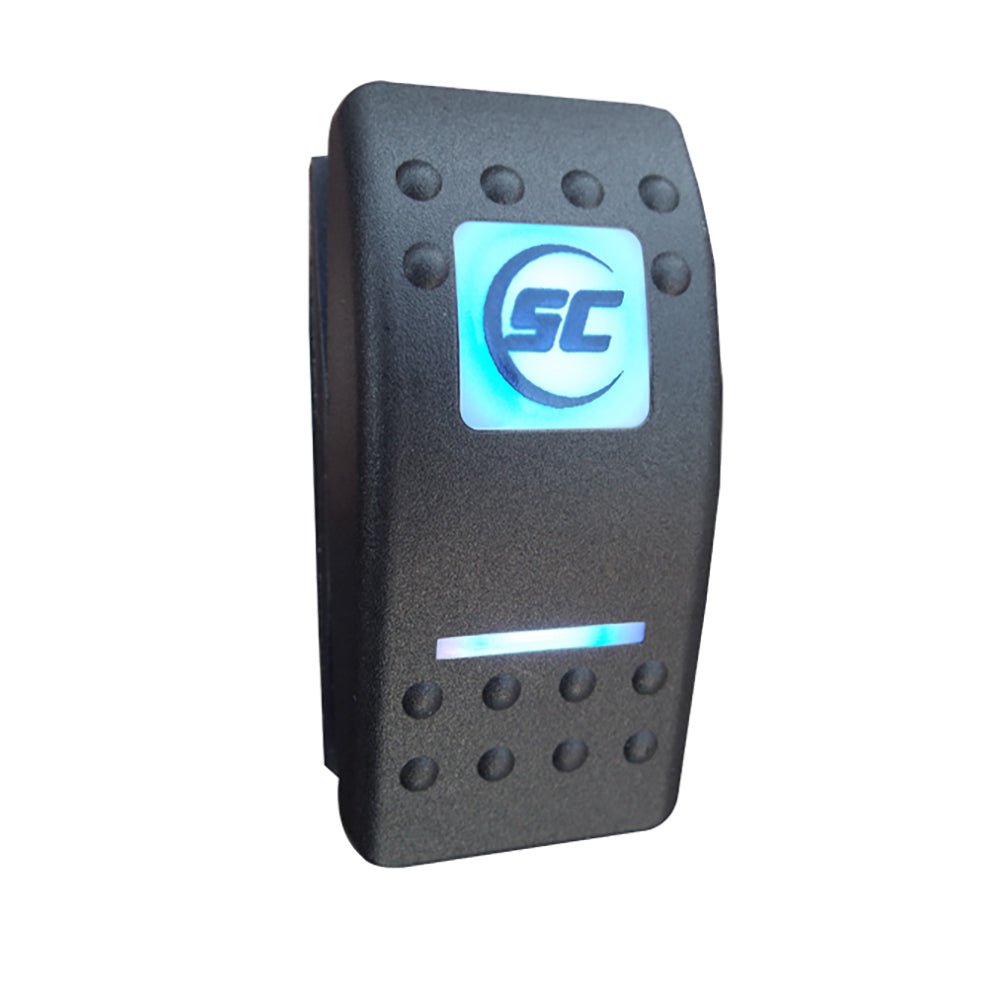

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]
- $40.25
-
Regular price
$42.99 -
-6%
- 6 available
3-Position On/Off/Momentary Marine LED Lighting SwitchOn / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting –...
Couldn't load pickup availability
Vendor: Shadow-Caster LED Lighting
Type: Accessories
Sku: CWR-88257
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]
$40.25
3-Position On/Off/Momentary Marine LED Lighting Switch
On / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.
Features:
- Power On/Off
- Color change
- Multiple fade mode changes
Specifications:
- Off/On/Momentary
- LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation)
- LED Color: Blue x 2
- Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
- Sealing IP66/68, for above-panel components of actual switch only
- Operating Temp. -40°C to +85°C
- Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
- Switch and actuator color: Black
Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.
