![Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82] - Houseboatparts.com](http://houseboatparts.com/cdn/shop/files/74718XL-743470.jpg?v=1713412922&width=1400)

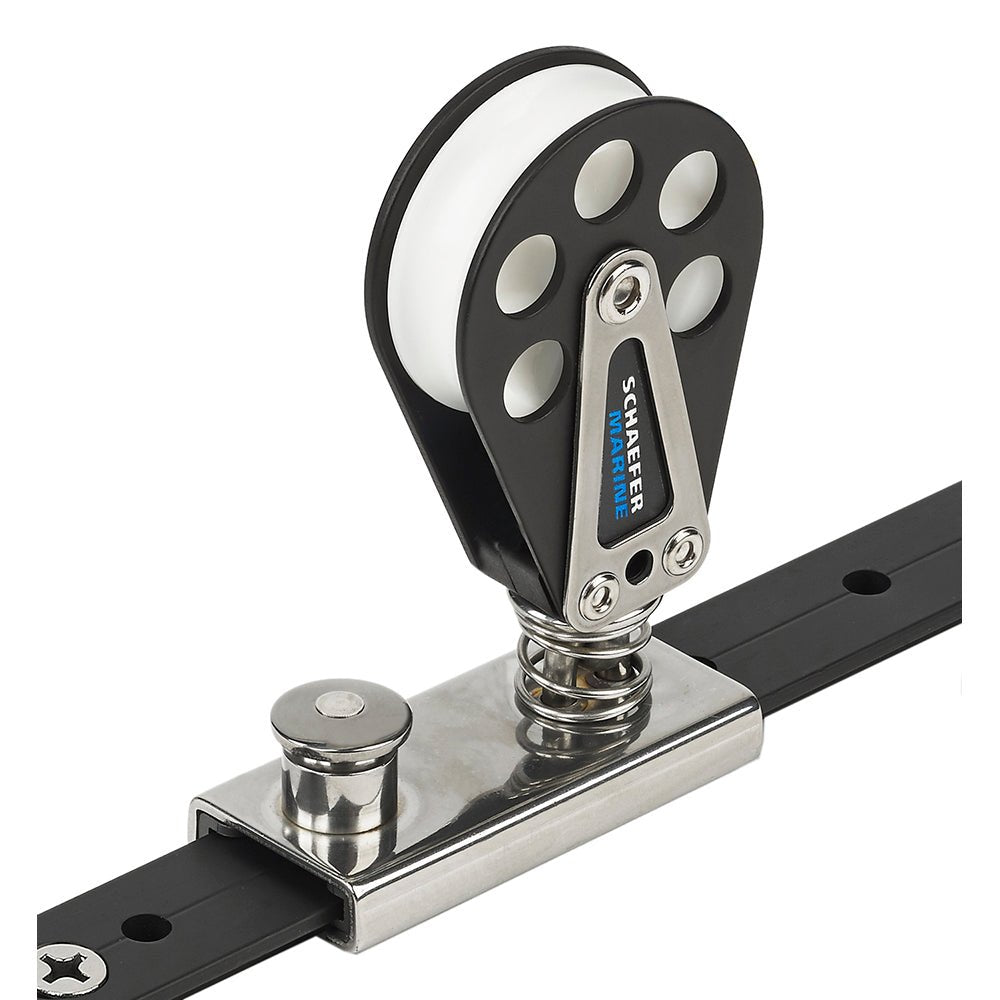

Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]
- $215.99
-
Regular price
$271.45 -
-20%
- 5 available
Spring Loaded/Lined Slide/Aluminum for 1" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless...
Couldn't load pickup availability
Vendor: Schaefer Marine
Type: Blocks
Sku: CWR-74718
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]
$215.99
Spring Loaded/Lined Slide/Aluminum for 1" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1" x 1/8" (25 mm x 3 mm)
- Max. Boat Length- 27' (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2" (51 mm)
- Max Line 7/16" (11 mm)
- Length 3" (76 mm)
- Width 1-1/4" (31 mm)
- Height 4-5/32" (105 mm)
- Bearing Height 2-7/32" (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
