Scanstrut Horizontal Double-Entry Cable Seal - Grey [DS-HD6]

Save $8.96
SKU: CWR-102389

Price:
Sale price$24.99 Regular price$33.95

Description

Horizontal Double-Entry Cable Seal - Grey

The DS-HD6 double horizontal cable seal was designed to eliminate the time-consuming and sub-standard routing of solar panel cables. Scanstrut's seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats.

Features:

  • Designed for solar panel installations
  • Compact footprint - just 54mm (W) 63mm (L) 24mm (h)
  • Makes it perfect for installing it as close to the solar panel as possible
  • Easy-fit cable routing that cuts down the installation time through wood, metal, and GRP
  • IP68 watertight seal
  • Grey high-impact plastic

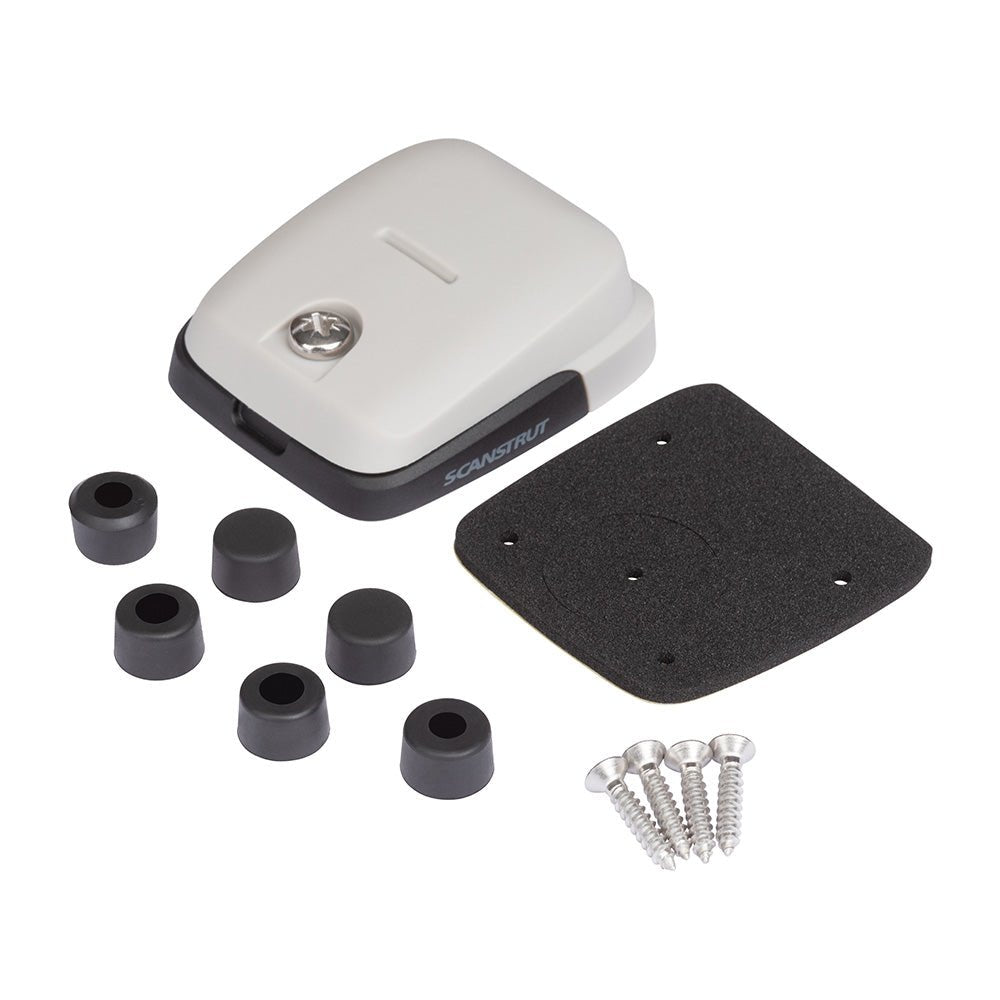

  • Includes 316 stainless steel fixings and a waterproof 3M gasket
  • Clean and simple design
  • The low-profile construction is impact-resistant and provides extra protection from water
  • Captive nuts make for easy assembly and also allow for reliable repeat installations
  • Scanstrut's materials have been selected to be UV-stable and hard-wearing
  • No messy sealant on the bungs
  • Constructed from premium marine-grade materials

Install 2 Cables – Select Any Combination:

  • 5mm (0.19”) and 6mm (0.23”) in any combination

Specifications:

  • Type: Deck Seal
  • Box Dimensions: 2"H x 4"W x 9"L WT: 0.25 lbs
  • UPC: 5060114798984
