Description
Built-in Dehumidifying
Portable dehumidifiers take up floor space and can be loud when used in living areas. This Ultra-Aire In-Wall dehumidifier, formerly the Ultra-Aire MD33, easily fits between wall studs for built-in dehumidifying, making it ideal for small spaces like apartments, hotels or multi-family housing.
How it Works
Simply set the desired humidity level on the electronic humidistat during installation, and this model maintains it for low-maintenance, hands-off use.

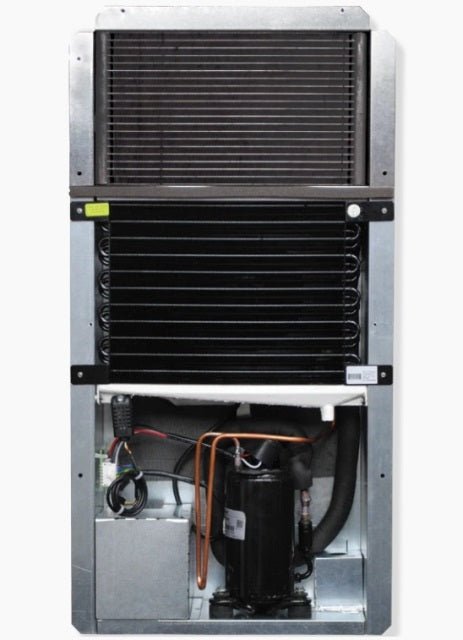

Air is brought in from the bottom and lower openings on both sides of the front panel. It’s released from the top and upper openings on each side.
The set point and on/off button is located behind the diffuser, limiting the access. This design allows for use in hotels, senior housing and other locations where limited access is ideal.
Common Uses
The UltraMD33 is perfect for tightly-sealed condos, homes and multi-family housing that need in-wall dehumidification:
- Single-family homes
- Apartments
- Senior living centers
- Student housing
- Hotels
- Houseboats
In addition to maintaining a healthy humidity level, you can avoid extra costs on mold remediation, property damage, comfort level complaints and more that come with high humidity levels.
Installation
Designed to fit between two wall studs, you’ll need an opening of 14.5 inches across and 30.25 inches tall. You must cut through both walls on either side of the dehumidifier, so installation has to be in an interior wall. It can be hardwired into existing electrical or plugged into a 120-volt outlet (an optional 10-foot cord and plug included with purchase).
Note: While professional installation is recommended, it’s not required. Be sure to shut off your electrical breaker before installation. See the owner’s manual for additional installation directions and requirements.
Additional Features
- Optional Moisture Sensor: A remote moisture sensor can be added to your in-wall dehumidifier. It will put your mind at ease if you're concerned about any moisture leakage.
- Long Warranty: Each UltraMD33 comes with a full 4-year warranty. Its galvanized steel cabinet is built to stand up to years of use without rust.
- Efficient Design: Remove 4.25 pints of moisture per kWh with this impressive dehumidifier.
- Operating Temperatures: Designed to work in areas between 49 and 95 degrees F.
- Automatic Restart: It automatically starts running to previous settings once power comes on after an outage.
- Quiet Operation: Compared to many dehumidifiers, this model only creates up to 46 decibels of noise during operation, which is approximately the sound of a refrigerator.

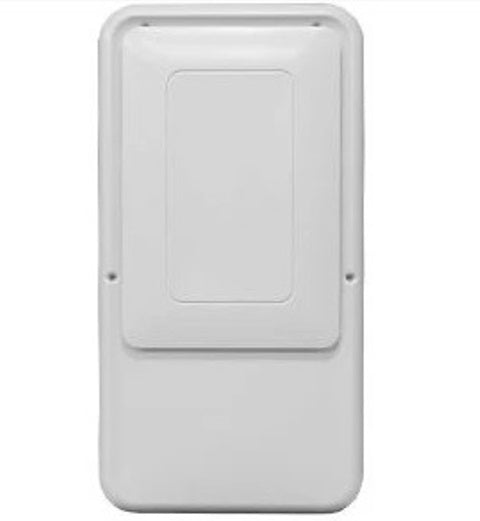

- Sleek Front Panel: A front cover easily slips over the front of the unit so it blends in with your indoor environment.
- Safety Listings: The MD33 is built to unified ETL, UL and CSA standards.
Draining
A 10-foot drain hose is included. It must be connected into the drain port and routed down the internal wall cavity to an HVAC AHU drain (which connects to the HVAC drain pan) or other acceptable drainage. Depending on where it's installed, this can be done by gravity, or an external condensate pump can be added to pump water to the drainage location.
Once it's set up, this design eliminates the need for reservoir tanks or other manual draining requirements. Be sure to check your local codes before installing this model.
Specifications
- Residential Use: Single Room, Living Space
- Practical Room: Size 400 sq. ft.
- Pint Capacity: 33 pints
- Height: 30 in.
- Width: 14.18 in.
- Depth: 5.75 in.
- Weight: 40 lbs.
- Water Container: No
- Full Bucket Indicator/Auto Shutoff: No
- Internal Condensate Pump: No
- Continuous Drain Capable: Yes
- Drain Hose Included: Yes
- Drain Hose Length: 10 ft.
- Drain Hose Diameter: 0.75 in.
- Controls: Electronic
- Humidistat: Yes
- Low Temperature Operation (41 degrees F and Under): No
- Automatic Defrost: Yes
- Fan Operation: Runs Only When Dehumidifying
- Maximum Cubic Feet per Minute (CFM): 155 CFM
- Maximum Noise Level: 46 dB
- Number of Filters: 1
- Filter Type: Washable
- Auto-Restart: Yes
- Ductable: No
- Refrigerant Type: R-134A
- Casters: No
- Maximum Amperage: 2.8 Amps
- Minimum Wattage: 2.8 W
- Maximum Wattage: 305 W
- Voltage: 110-120 V
- Power Cord Length: 10 ft.
- Energy Star: No
- Energy Factor: 2.0 L/kWh
- Safety Certifications: ETL
- Lowest Operating Temperature: 49 degrees
- Wi-Fi Capable: No
- Bluetooth Capable: No
- Desiccant: No
- Low Grain Refrigerant (LGR): No
- Color: White
- Manufacturer-Suggested Room Size: 1200 sq. ft.
