![Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Lashing head [RF35101] - Houseboatparts.com](http://houseboatparts.com/cdn/shop/files/55174XL-349327.jpg?v=1713412095&width=1400)

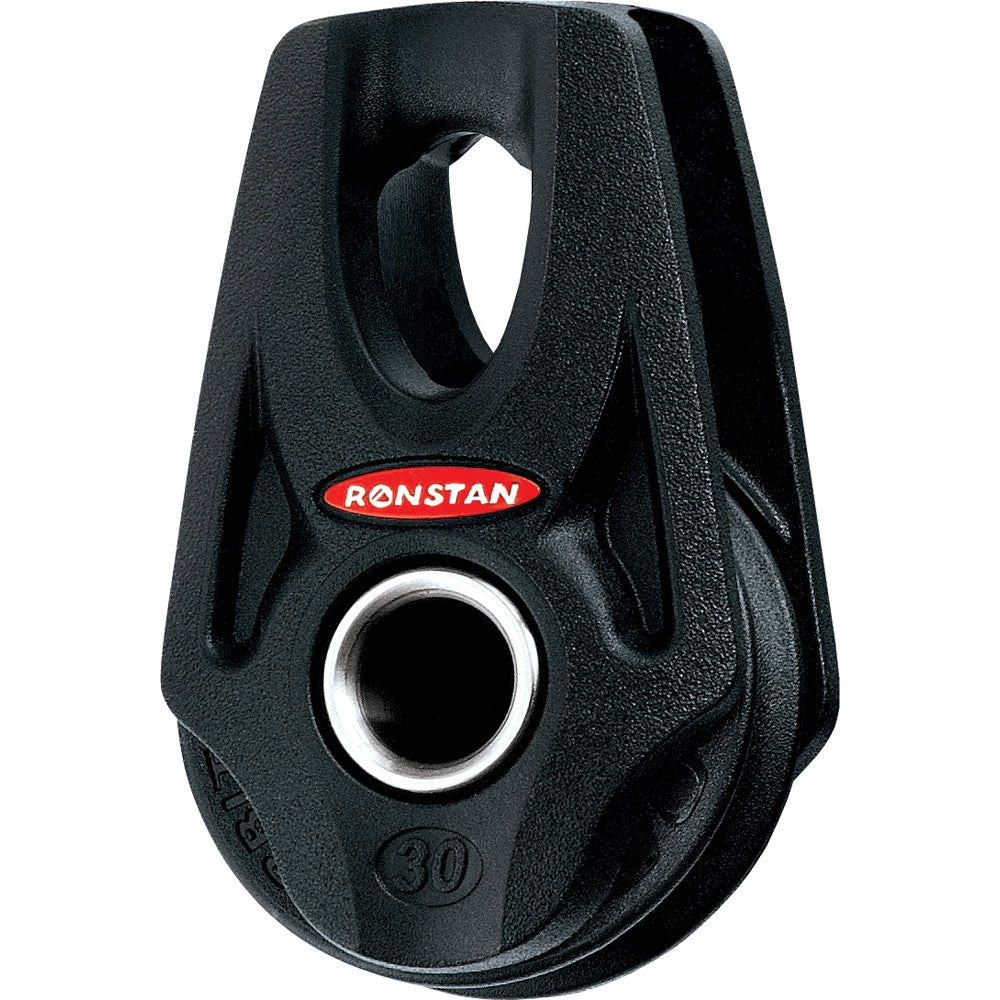

Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Lashing head [RF35101]
- $17.26
-
Regular price
$20.30 -
-14%
- 8 available
Series 30 Ball Bearing Orbit Block - Single - Becket - Lashing HeadBall Bearing Orbit Blocks boast the highest strength-to-weight...
Couldn't load pickup availability
Vendor: Ronstan
Type: Blocks
Sku: CWR-55174
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Lashing head [RF35101]
$17.26
Series 30 Ball Bearing Orbit Block - Single - Becket - Lashing Head
Ball Bearing Orbit Blocks boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options.
Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.
Features:
- Lightweight
- Highest working load in its class
- Secure, versatile and secure attachement
- Low profile and compact
- Ultra low profile thru-sheave becket
- RF35101 accepts RF1850S shackle in both orientations to create a conventional loop top block
- Self-lubricating Nylatron® sheave and full contact bearing for high dynamic loads
Applications:
- Mainsheet systems and spinnaker sheets on dinghies to 5M(16')
- Halyard, vang and backstay applications on boats to 5M(16')
- Control line applications on larger yachts
Materials:
- Sheave: High compression strength carbon black Acetal
- Ball Bearings: High compression strength Acetal
- Frame/Cheeks: Toughened, glass fiber reinforced Nylon
- Link: UV stabilized, multi-strand impregnated SK75 Dyneema®
Specifications:
=Sheave Ø: 30mm(1-3/16")
Max. Rope Ø: 8mm(5/16")
M.W.L.: 300kg(660lbs)
B. L.: 600kg(1,320lbs)
Weight: 22g(0.8oz)
Quick Guide (pdf)
