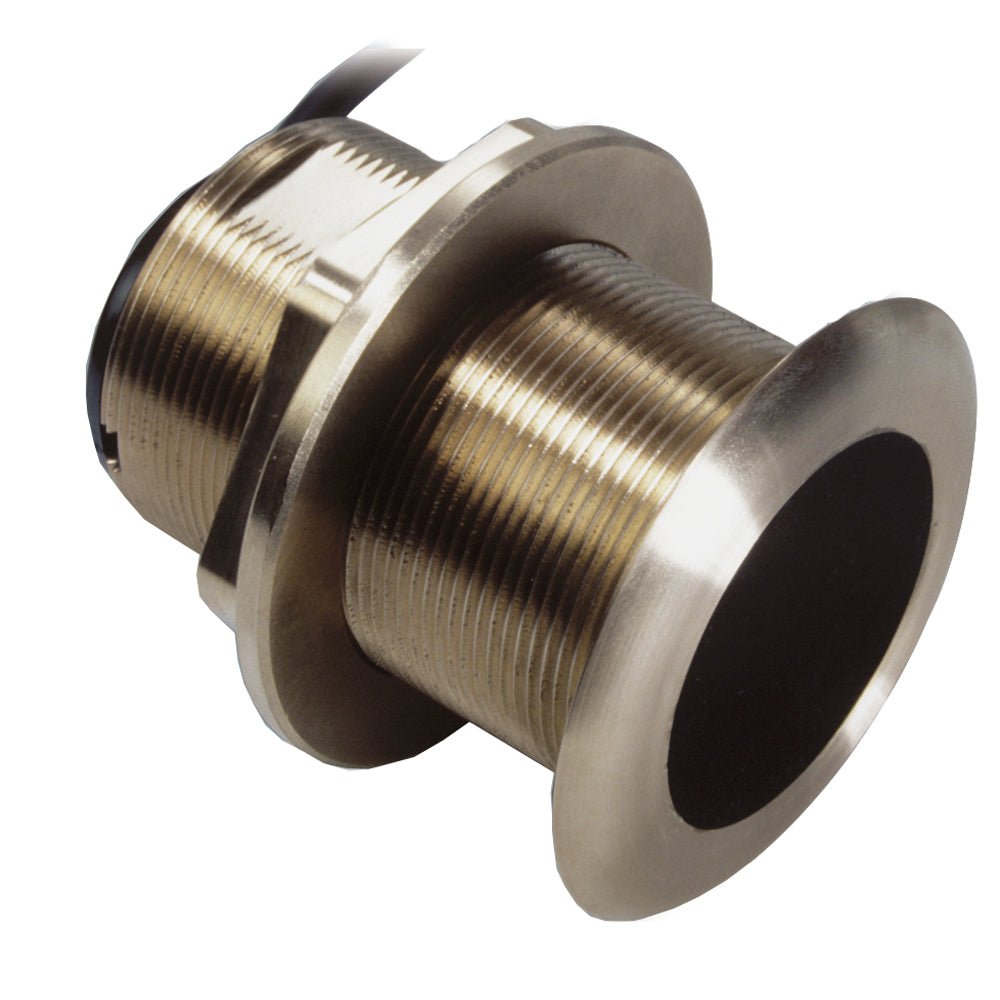

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 [E66085]
- $389.00
-
Regular price
$429.99 -
-9%
- Will be in stock after
B60 Tilted Element 20°20° titled version is designed for 16° - 24° deadrise anglesFor use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300The bronze B60-20°...
Couldn't load pickup availability
Vendor: Raymarine
Type: Transducers
Sku: CWR-26250
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 [E66085]
$389.00
B60 Tilted Element 20°
20° titled version is designed for 16° - 24° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Specifications:
- Chirp: No
- Cable Length (Feet): 33'
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Box Dimensions: 3"H x 7"W x 7"L WT: 5.85 lbs
Owner's Manual (pdf)
Brochure (pdf)
