![Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321] - Houseboatparts.com](http://houseboatparts.com/cdn/shop/files/65170XL-591494.jpg?v=1713411014&width=1400)

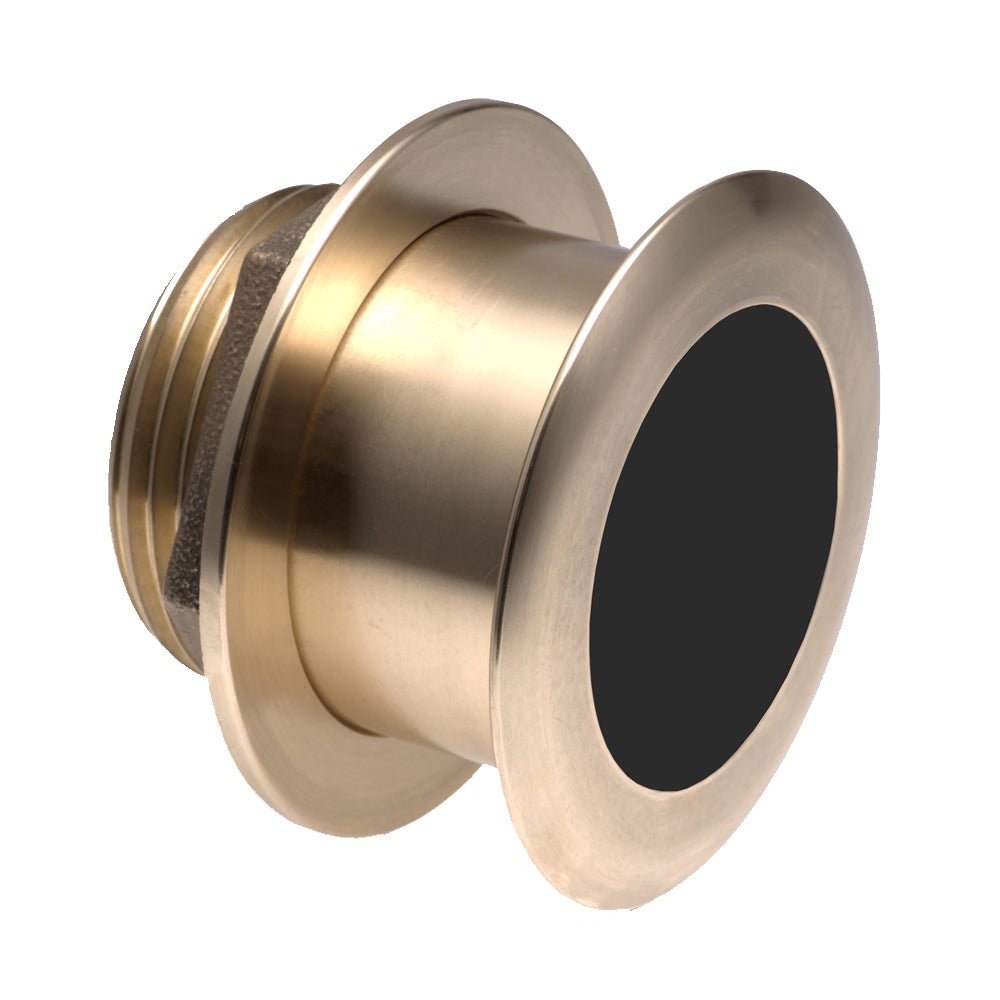

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
- Regular price $1,579.00
-
-%
- 2 available
B175H-W 1KW Bronze Thru Hull 20° Tilted ElementInstallation: Thru HullMaterial: UrethanePower (RMS): 1kWMax Depth(ft): 800Frequency (KHz): 150-250Records: Depth and TemperatureApproved...
Couldn't load pickup availability
Vendor: Raymarine
Type: Transducers
Sku: CWR-65170
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
$1,579.00
B175H-W 1KW Bronze Thru Hull 20° Tilted Element
Installation: Thru Hull
Material: Urethane
Power (RMS): 1kW
Max Depth(ft): 800
Frequency (KHz): 150-250
Records: Depth and Temperature
Approved Hull Material: Fiberglass / Wood
Cable Length (ft/M): 6ft/2m
Supported deadrise: 16-24° Deadrise
ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High Wide
- Cable Length (Feet): 6'
- Box Dimensions: 9"H x 11"W x 12"L WT: 9.8 lbs
- UPC: 723193796276
