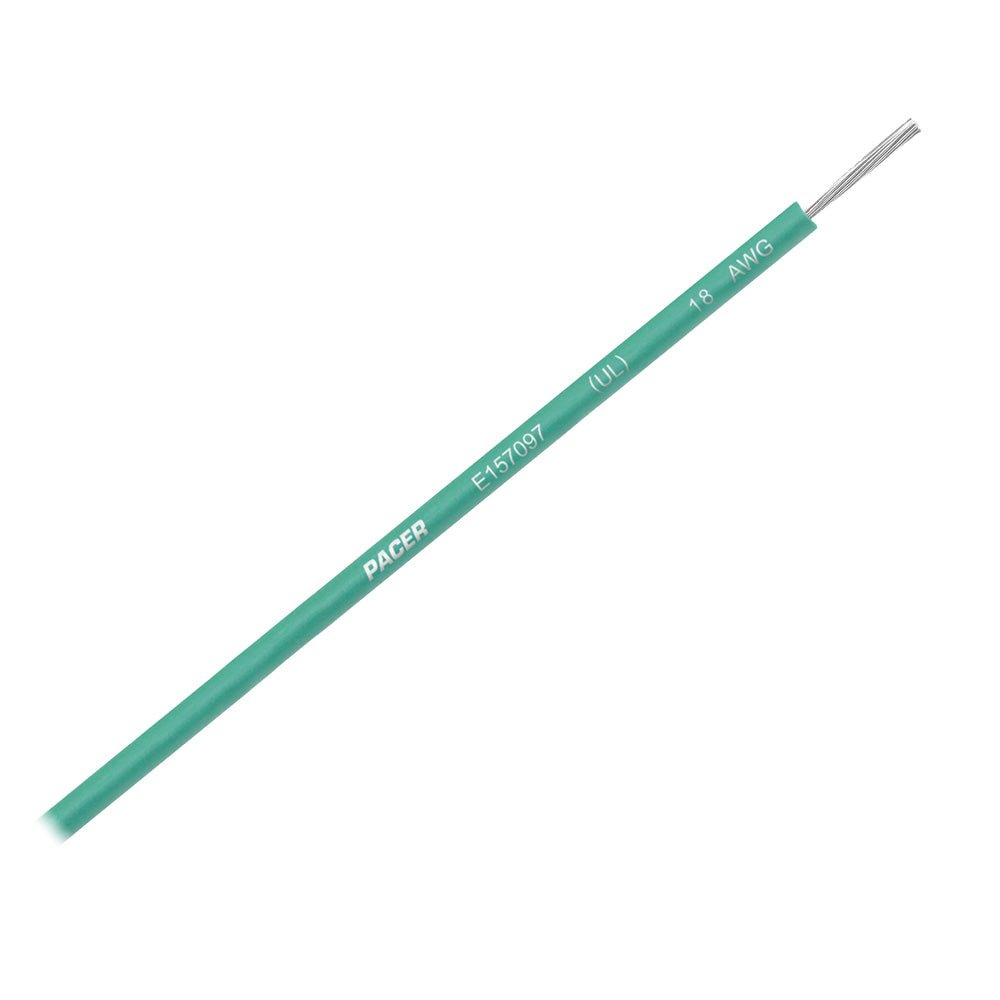

Pacer Green 18 AWG UL Marine Wire - 35' [WUL18GN-35]
- $8.99
-
Regular price
$18.59 -
-51%
- 6 available
Inform when this item available Pacer Green 18 AWG UL Marine Wire - 35' [WUL18GN-35]
Couldn't load pickup availability
Vendor: Pacer
Type: Wire
Sku: CWR-104959
Rewards
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Pacer Green 18 AWG UL Marine Wire - 35' [WUL18GN-35]
Green 18 AWG UL Marine Wire - 35'
Pacer's marine wire is designed to handle the harshest marine environments. It is manufactured to meet and exceed the most stringent specifications. This 18 AWG marine wire is constructed in-house in Sarasota, FL, USA, to achieve the highest level of quality. Built from Type III class K tinned copper, Pacer marine wire offers excellent corrosion resistance and flexibility.
After the copper is tinned, it is then insulated with a durable and flexible proprietary PVC jacket. The jacket makes this 18 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture. All marine wire needs to be durable enough to handle the toughest conditions, and Pacer marine wire does just that. Pacer's marine wire meets or exceeds the requirements and standards of UL, ABYC, and NMMA.
Features:
- Stranded, tinned copper conductors
- Highly flexible color-coded insulation
Compliances:
- AWM 1015/1230
- CSA: TEW
- Temperature Rating: 105 °C Dry, 60 °C Wet
Characteristics:
- Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K
- Insulation: -20 °C to 105 °C flexible, color-coded PVC
- Voltage Rating: 600-V
- Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
Applications:
- Point to point wiring
- Internal wiring of panels and motors
Specifications:
- AWG: 18
- Length: 35 ft.
- Color: Green
- Cond. Stranding: 16/0.0100
- Nom. Ins. Thickness: 0.030
- Nom. O.D.: 0.114
- Nom. Circular Mils: 1600
- Approximate LB/M: 10.3
Specifications:
- Color: Green
- Gauge: 18 AWG
- Length (Feet): 35'
- Box Dimensions: 2"H x 4"W x 4"L WT: 0.5 lbs
- UPC: 0840248214858
