Pacer DT Deutsch Receptacle Repair Kit - 14-18 AWG (4 Position) [TDT04F-4RP]

Save $1.12
SKU: CWR-102497

Price:
Sale price$4.99 Regular price$6.11

Description

DT Deutsch Receptacle Repair Kit - 14-18 AWG (4 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

  • Packs include all parts needed to assemble a connector
  • One to two extra terminals
  • Cavity plugs to seal open circuits

Applications:

  • Wire-to-wire applications
  • Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

  • Ingress Protection (IP) Level: IP68 and IP6K9K
  • EU RoHS/ELV
  • Standard UL-94 Recognized

Characteristics:

  • Wedge locks ensure contact alignment and retention
  • Redundant Silicone Seals
  • Hand-insertable and removable contacts

Technical Specifications:

  • Number of Cavities: 4
  • Housing: Rectangular receptacle, plastic reinforced with glass fiber
  • Contact Size: 16 (13 amp)
  • Wire Size: 14 AWG
  • Holds Pin/Socket: Pins
  • Operating Temperature: -55°C to 125°C

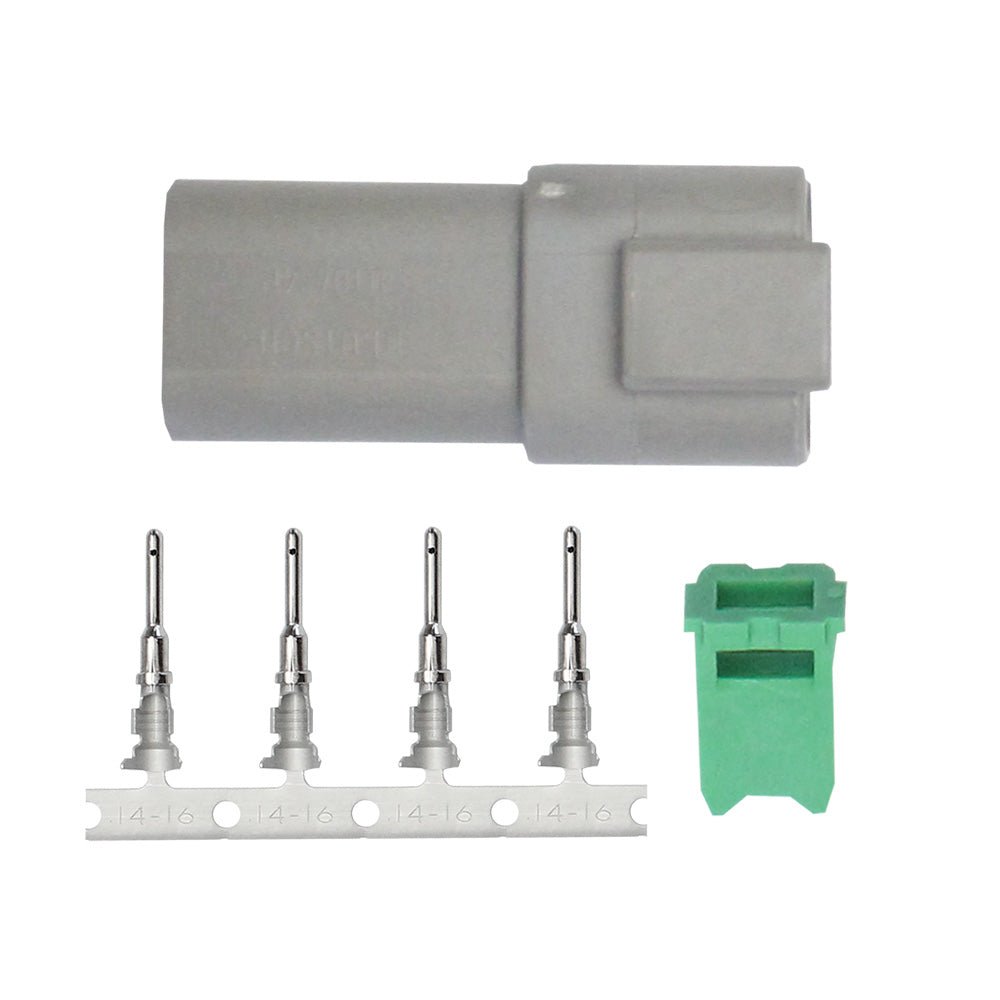

Contents:

  • (1) 4 pos. receptacle
  • (1) 4 pos. wedge lock
  • (5) pins
  • (2) cavity plugs

Quick Guide (pdf)
