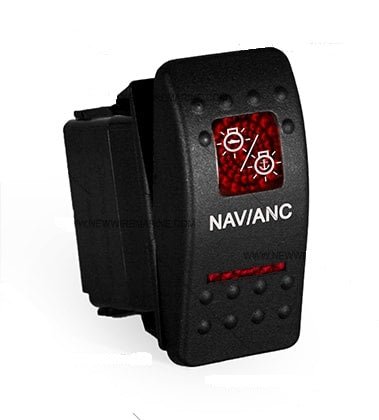

Navigation/Anchor Rocker Switch

SKU: 13-432

Price:
Sale price$30.06

Description

This Nav/Anc rocker switch has 7 terminals on the back:

  1. 12V input – terminal 2 and 5
  2. Anchor output – terminal 1
  3. Navigation Light output – Terminal 3
  4. Negative source – terminal 7
  5. * Place jumper between terminals 2-5 and 1-6 (see wiring diagram)
  • Voltage Rating: 12Vdc
  • Current Rating: 20A
  • Circuit: DPDT
  • Position: ON-OFF-ON
  • Water Protection: IP68 (waterproof to >1m submersion)
  • Terminal Count: 7
  • Terminal Style: 0.250″ Quick Connect (spades)
  • Body P/N: VJD1-D66B
  • Contact Life: 150,000 cycles
  • Lamp Life: 10,000 hours

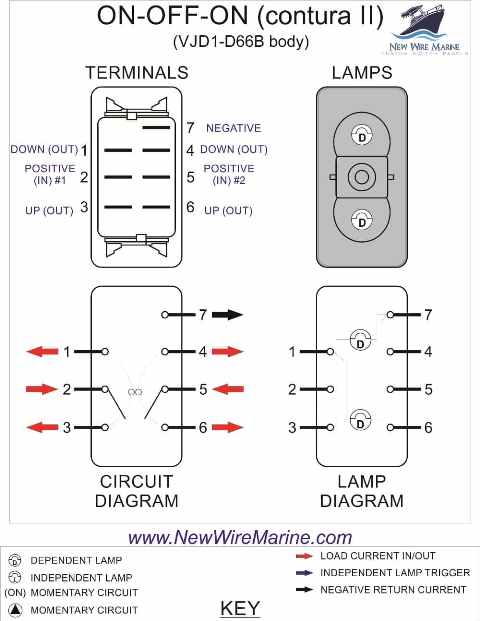

You can find a copy of the wiring diagram in the product images above, or download a PDF wiring diagram here.
