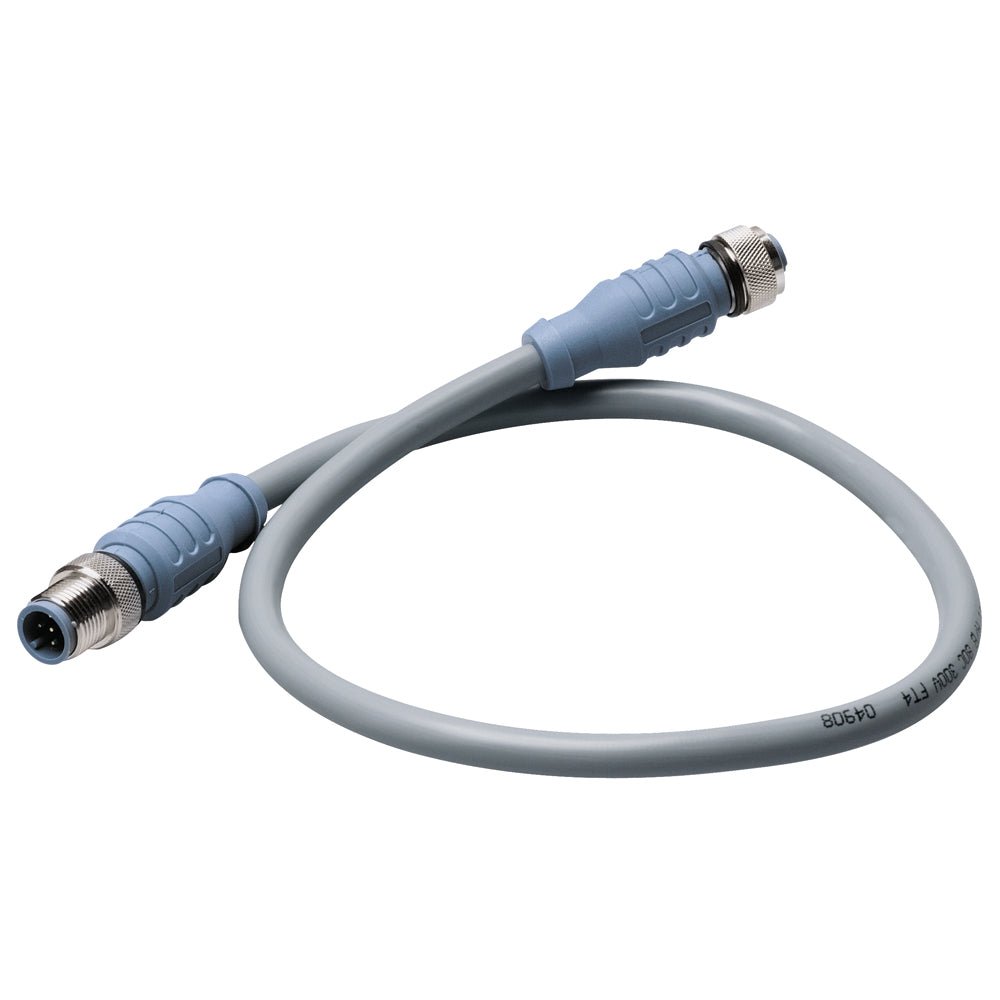

Maretron Mid Double-Ended Cordset - 3 Meter - Gray [DM-DG1-DF-03.0]
- Regular price $50.00
-
-%
- 4 available
Maretron Mid Double-Ended Cordset - 3 M GrayMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating:...
Couldn't load pickup availability
Vendor: Maretron
Type: NMEA Cables & Sensors
Sku: CWR-46991
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Maretron Mid Double-Ended Cordset - 3 Meter - Gray [DM-DG1-DF-03.0]
$50.00
Maretron Mid Double-Ended Cordset - 3 M Gray
Mechanical:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical - Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable
- Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
- Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL - Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
APPROVALS - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
Specifications:
- Connection Gender: Male-Female
- Data Interface: NMEA 2000
- Cable Length (Meters): 3m
- Box Dimensions: 1"H x 6"W x 8"L WT: 0.8 lbs
- UPC: 873804001791
