Lumishore EOS SMX154 Single Surface Mount Light [010-04508-00]

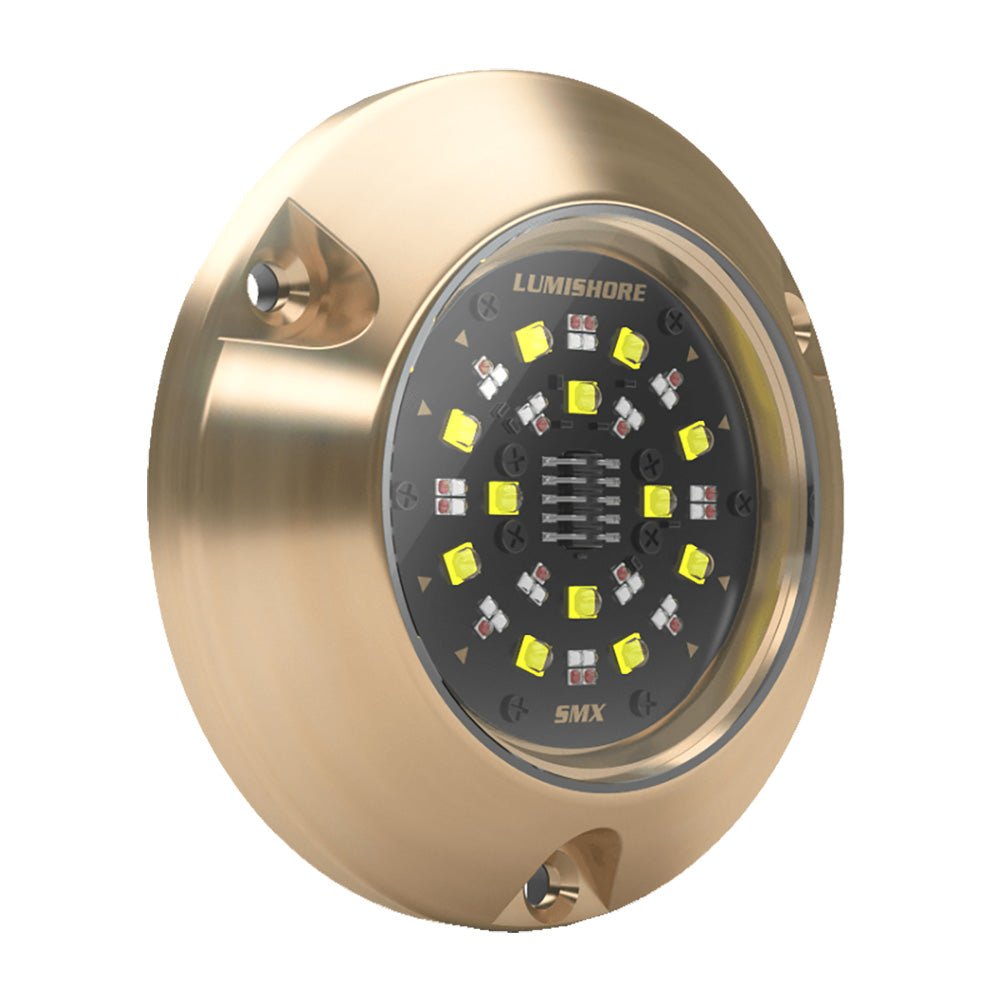

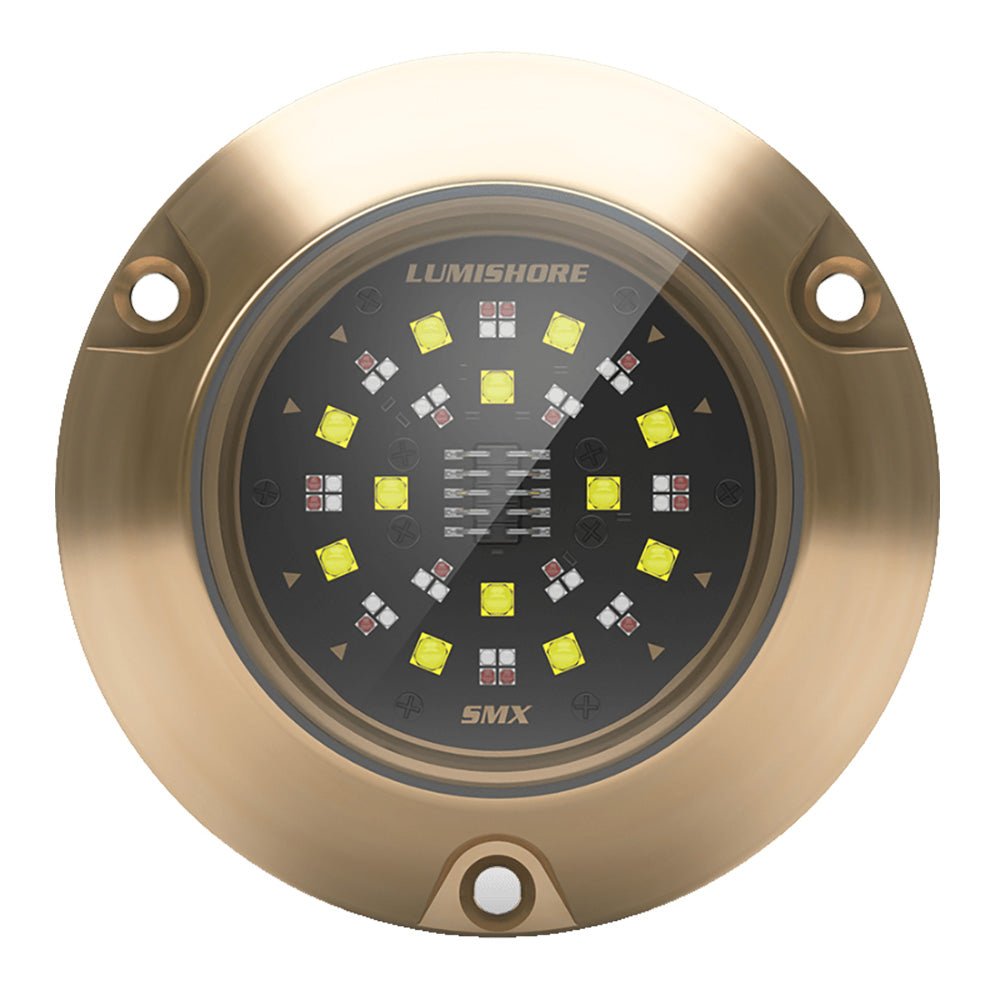

EOS SMX154 Single Surface Mount Light

The SMX154 offers boat owners unprecedented full color control of their underwater lighting system, delivering 7,000 verified fixture lumens and a wide 90° beam angle.

Control your SMX154 underwater lights directly from your compatible MFD and/or Lumishore Display.

Lumishore's unique light discovery and light auto-install function simplifies the system setup and reduces installation time.

Suitable for stepped hulls, transoms, and side mounting.

Specifications:

• Available Colors: Full EOS Color Change (RGBW)
• Lumens: 15,750
• Fixture Lumens (White): 7,000
• Number & Type Of LED: White–12×10W / Green–12×3W / Blue–12×3W / Red–16×3W
• LED Power - HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: Certified MFD Screen EOS-LUX-SUPRA Display WiFi Control from Smart Phone or Connected Device (via MFD or 2204i Wifi)
• Electrical Installation: Plug-and-Play Connections
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens

Specifications:

• Color: RGBW
• Material: Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 12/24V
• Box Dimensions: 3"H x 6"W x 6"L WT: 1.85 lbs
• UPC: 847772003910
