Lenco 9" x 14" Airboat Trim Tab Kit w/o Switch [15112-101]
- $375.99
-
Regular price
$545.36 -
-31%
- 3 available
Inform when this item available Lenco 9" x 14" Airboat Trim Tab Kit w/o Switch [15112-101]
Couldn't load pickup availability
Vendor: Lenco Marine
Type: Trim Tabs
Sku: CWR-50940
Rewards
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout

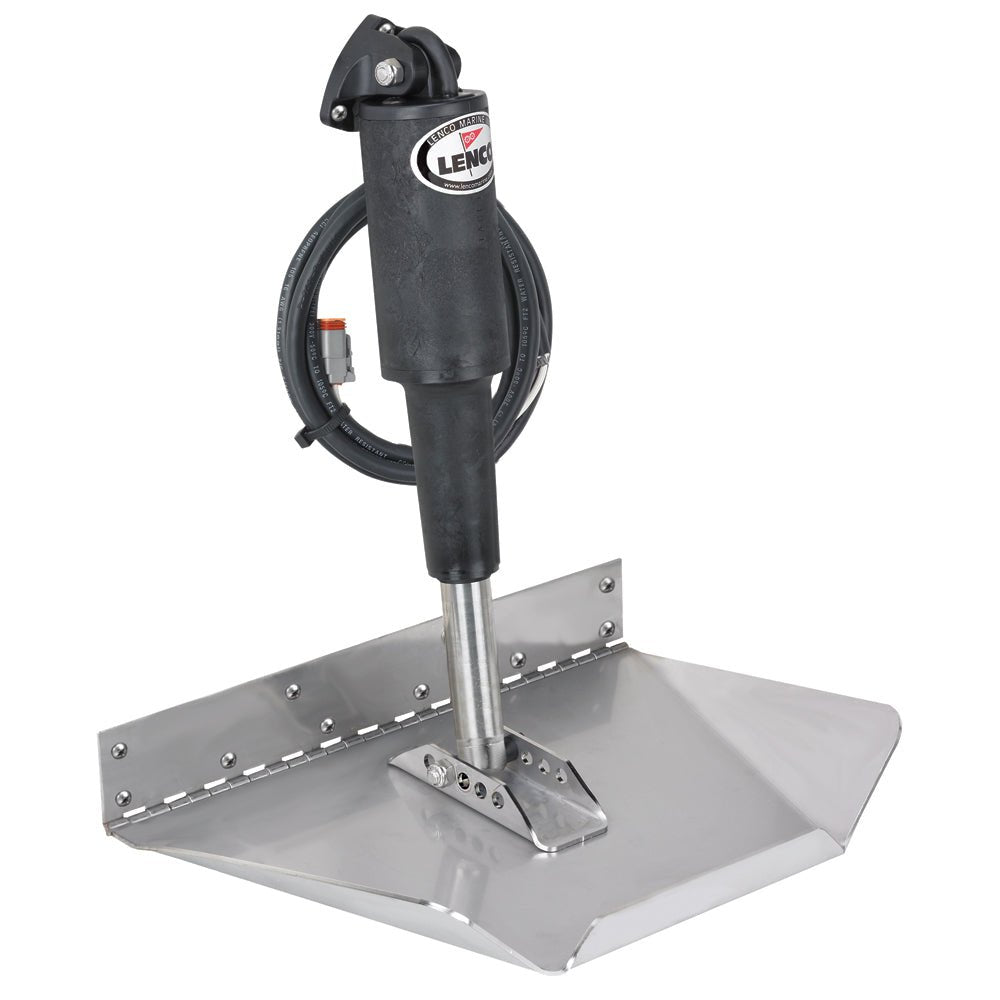

Lenco 9" x 14" Airboat Trim Tab Kit w/o Switch [15112-101]
Airboat Trim Tab Kits
12-Gauge Blades / 12-Volt Actuators
Lenco Airboat Electric Trim Tab Kit was designed exclusively for airboats. Engineered with a short Extreme Duty Actuator and a unique mount that allows maximum plate movement and safe upward position when running in shallow water and on land. This system eliminates porposing and helps to create a smoother ride.
Blade is 12 gauge - 304 SS with 5/8" flared trailing edge and 1" Custom Hinge with 1/8" diameter hinge pin. Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections.
Kit Contents
- 1 each of 12-gauge 304 stainless steel trim tab plane
- 1 each of #15055-001 XD actuator with 6' lead and Deutsch plug
- 1 each of #30133-002 14' actuator extension wiring harness
- 1 each of #15085-001 (116) upper mounting bracket with gland seal
- 1 each of the Lenco owner's/installation manual
- All necessary stainless steel mounting hardware
Specifications
- Trim Tab Kit: Airboat
- Blades: 12 Gauge Stainless Steel
- Finish: Smooth
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Made in: Stuart, Florida U.S.A.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Specifications:
- Actuator Type: Electro-Mechanical
- Construction: Stainless Steel
- Box Dimensions: 7"H x 13"W x 25"L WT: 11.3 lbs
- UPC: 874847006637
Brochure (pdf)
