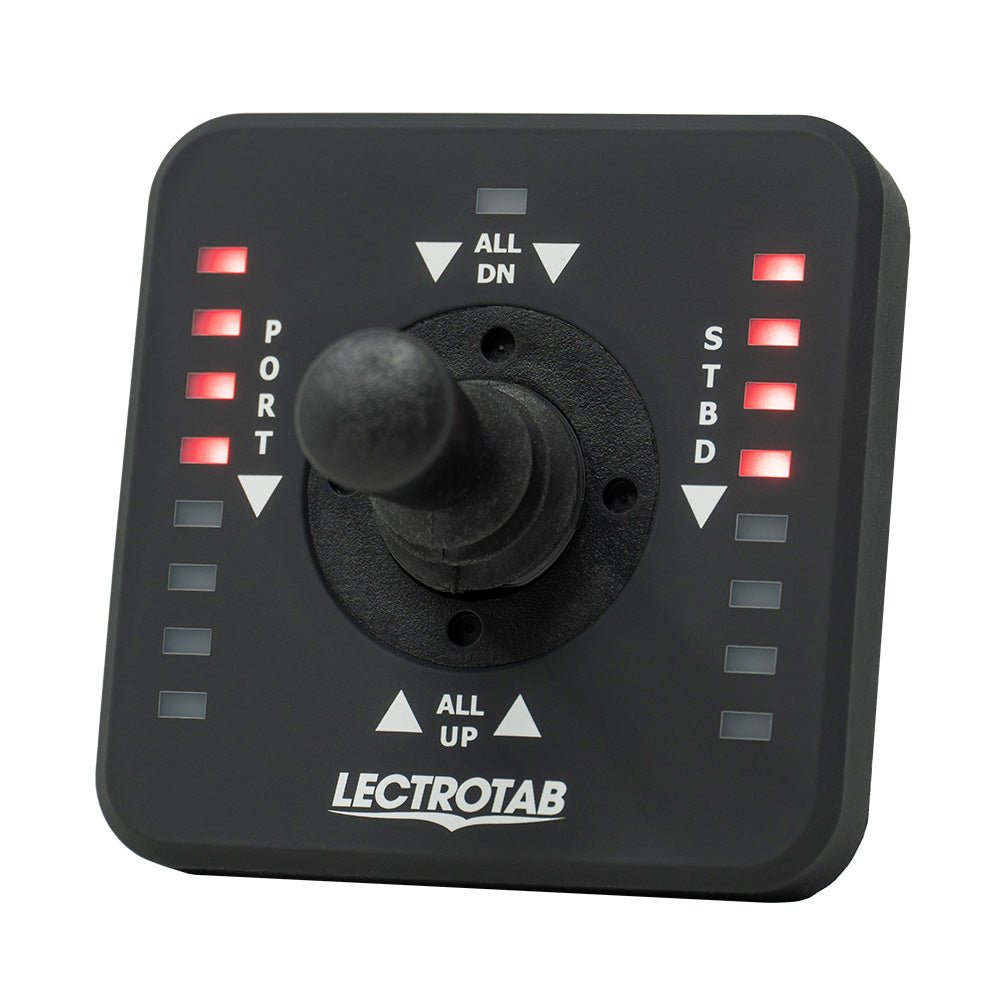

Lectrotab Joystick LED Trim Tab Control [JLC-11]
- $392.70
-
Regular price
$462.00 -
-15%
- 3 available
Joystick LED Trim Tab ControlLectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a...
Couldn't load pickup availability
Vendor: Lectrotab
Type: Trim Tab Accessories
Sku: CWR-101159
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Lectrotab Joystick LED Trim Tab Control [JLC-11]
$392.70
Joystick LED Trim Tab Control
Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.
Features:
- Single “Joystick” control
- NMEA 2000 compatible
- LED display of each trim tab position
- Microprocessor-based trim tab control with LED tab position indicators
- NMEA 2000 compatible with JLC-NMEA adapter
- Move both tabs up or down simultaneously with a single motion
- Dual station ready – just add a second JLC-11 and JR-* cable (sold separately)
- Automatic return to last tab position if the ignition key is turned off and back on again
- Completely sealed, completely waterproof, and will not deteriorate in sunlight
- Automatic tab retraction and calibration with key or accessory switch off
- Easy upgrade from any of our Lectrotab controls
- No external power module required
- LED tab position indicators dim automatically in darkness and brighten in sunlight
- Single or Dual Actuator per tab
- Operates on 12 or 24 VDC systems
Specifications:
- Display Color: Black
- Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab
- Overall Width: 3.0"/77mm
- Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm)
- Mounting Hole Cutout (Diameter): 2.625"/66.7mm
- DC Voltage: 12/24
- Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs
- Fuse Size Aux. (Must Connect): 1 to 2 AMPs
Quick Guide (pdf)
