Description

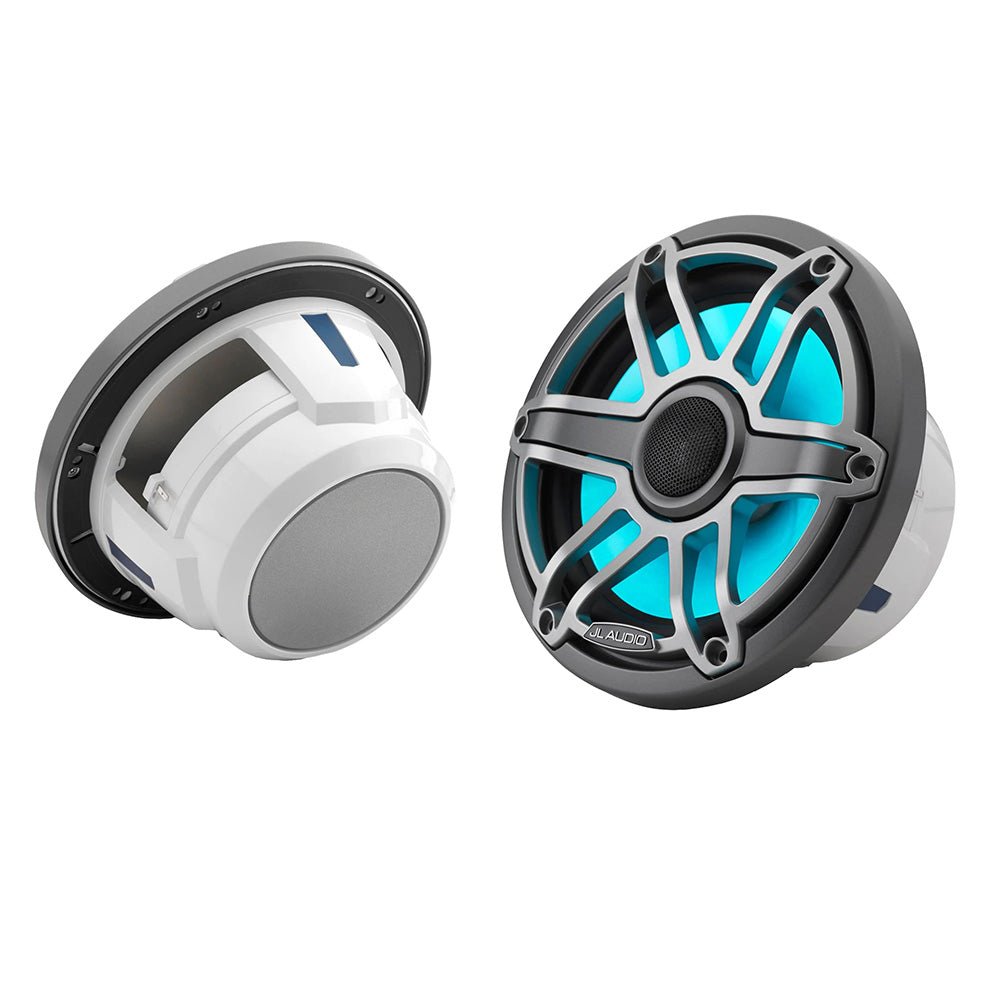

M6 Series 7.7" Marine Coaxial Speakers with Grey Metallic Sport Grille & Transflective™ LED Lighting - M6-770X-S-GmTi-i
Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment, with the added visual impact of JL Audio’s Transflective™ RGB LED lighting.
The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed. The woofer element is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low-frequency performance.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel. The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations.
*Sold as a pair
Specifications:
- Continuous Power Handling (RMS): 100w
- Recommended Amplifier Power (RMS): 40-200w/ch
- System Efficiency: 91.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 ohm
- System Frequency Response: 45 Hz - 25 KHz ± 3 dB
Specifications:
- LED Lighting: Yes
- Mounting Style: Surface
- QTY: Pair
- Size: 7.7"
- Watts RMS: 100w
- Box Dimensions: 5"H x 9"W x 17"L WT: 11.35 lbs
- UPC: 699440936040
Owner's Manual (pdf)
