em-trak I100-X Small Vessel Tracker - Open Box - Never Programmed [417-0077-OB]

I100-X Small Vessel Tracker - Open Box - Never Programmed

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.**

Click here to download the form.

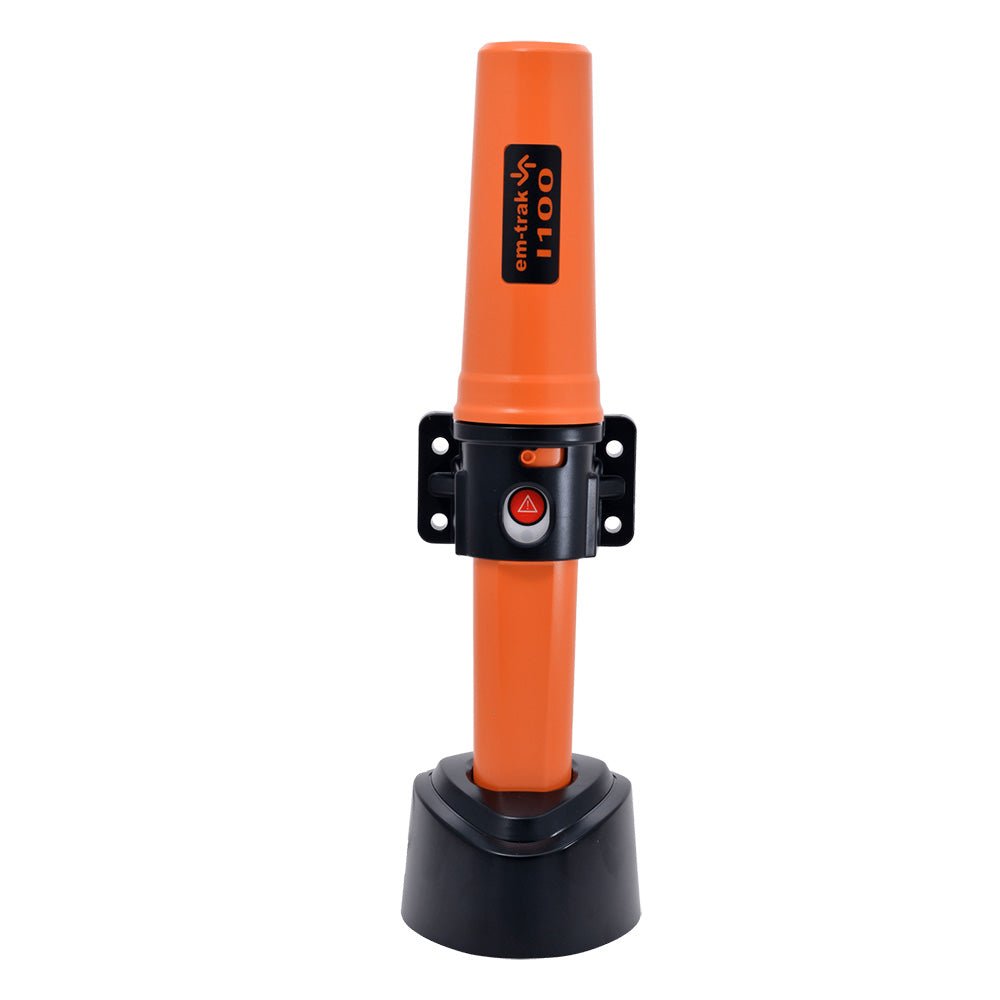

The Identifier I100-X is a rugged, fully self-contained AIS Class B vessel-tracking transponder, ideal for small-boat tracking and monitoring.

I100-X can power itself using its own internal rapid-recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source, such as an engine, battery, or solar, with the battery then acting as a backup.

I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.

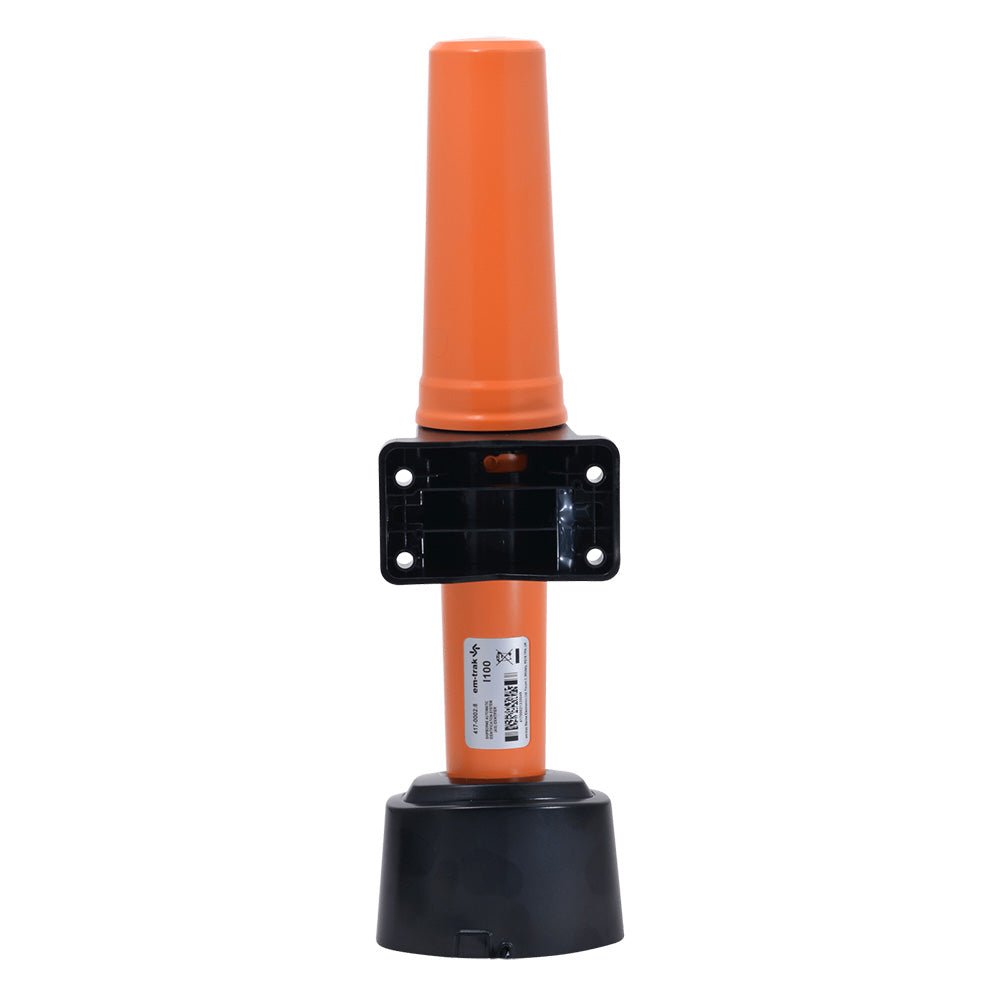

Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.

Features:

• Certified AIS Class B Transponder
• 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation
• It takes only 5 hours to completely recharge
• Rugged IPX8 design ensures the operational performance

Physical & Environmental Specifications:

• Size (H x W): 370 x 67 mm
• Weight: 355g
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx8 (1.1m 30 mins)

Electrical Specifications:

• Battery Capacity: 2300mAh
• Battery Type: 3.7V Li-Ion rechargeable
• Battery Life (default operating conditions): 120 hours

Standards Compliance:

• AIS Standards: IEC 62287-1 Ed. 3.  ITU-R M.1371.5
• Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
• Environmental Standards: IEC 60945 Ed. 4
• GNSS Performance Standards: IEC 61108-1 Ed 2.0

GNSS:

• Systems Supported: GPS & GLONASS
• Channels: 72
• Time to First Fix from Cold Start: 26s

VHF Transceiver:

• VDL Access Scheme: CSTDMA
• Operating Frequency: 156.025MHz – 162.025MHz
• Channel Bandwidth: 25kHz
• Receivers / Transmitters: 1 x transmitter
• AIS Transmitter Power: 2W (33dBm radiated)

User Interface:

• Buttons: SOS
• Indicators: Status indicator

Charging Dock:

• Size (H x W x D): 110mm x 120mm x 78mm
• Weight: 360g
• Power Supply: 115V / 240V AC

Configuration Dock:

• Size (H x W x D): 110mm x 120mm x 78mm
• Weight: 360g
• Power Supply: 115V / 240V AC
• PC Interface: USB (cable supplied)

In the Box:

• 1 x Identifier
• 1 x Vessel Bracket and a Fixings Pack
• 1 x Charging Dock

*NOTE: You will also require a configuration dock product code: 417-0047. This is used to program the unit before deployment.

Specifications:

• Frequency: 156.025MHz – 162.025MHz
• Operational Life (Hours): 120.00
• Box Dimensions: 5"H x 10"W x 17"L WT: 3.6 lbs
