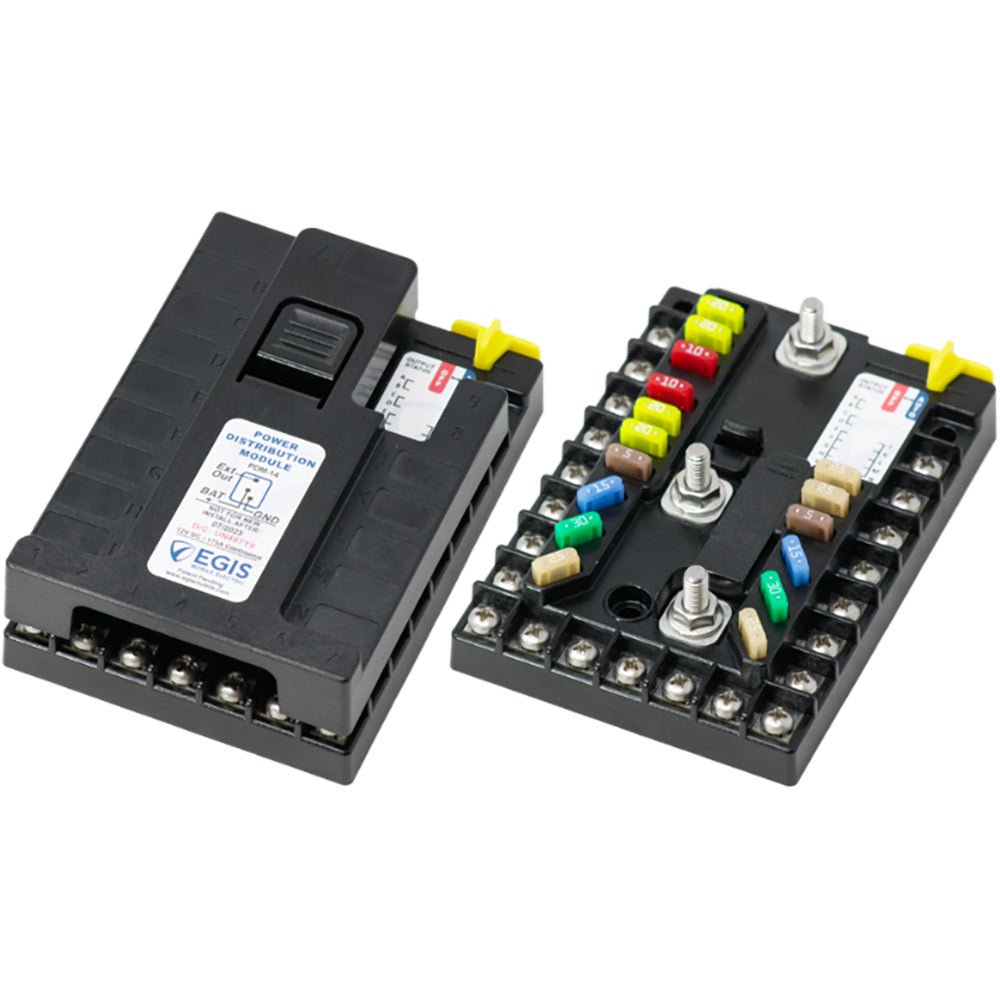

Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch [2601]
- $182.99
-
Regular price
$249.90 -
-26%
- 4 available
PDM 14 Circuit + Ground 175A 12V with Kill SwitchDesigned for professional installers, this is a compact solution that combines...
Couldn't load pickup availability
Vendor: Egis Mobile Electric
Type: Accessories
Sku: CWR-113518
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch [2601]
$182.99
PDM 14 Circuit + Ground 175A 12V with Kill Switch
Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.
Features:
- For 12-volt systems, the allowed voltage range is 8-18 VDC
- Total continuous output limit: 175 amps
- Three load groups with a continuous output of 75-115 amps
- Optional time delay 0-10 hrs
- Optional low voltage protection 11-12.2 volts
- Offload current draw 1.3 mA
Quick Guide (pdf)
