Egis MRBF Terminal Fuse - 30 Amp [3603-030]
- $10.99
-
Regular price
$13.30 -
-17%
- 6 available
Inform when this item available Egis MRBF Terminal Fuse - 30 Amp [3603-030]
Couldn't load pickup availability
Vendor: Egis Mobile Electric
Type: Fuse Blocks & Fuses
Sku: CWR-107411
Rewards
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout

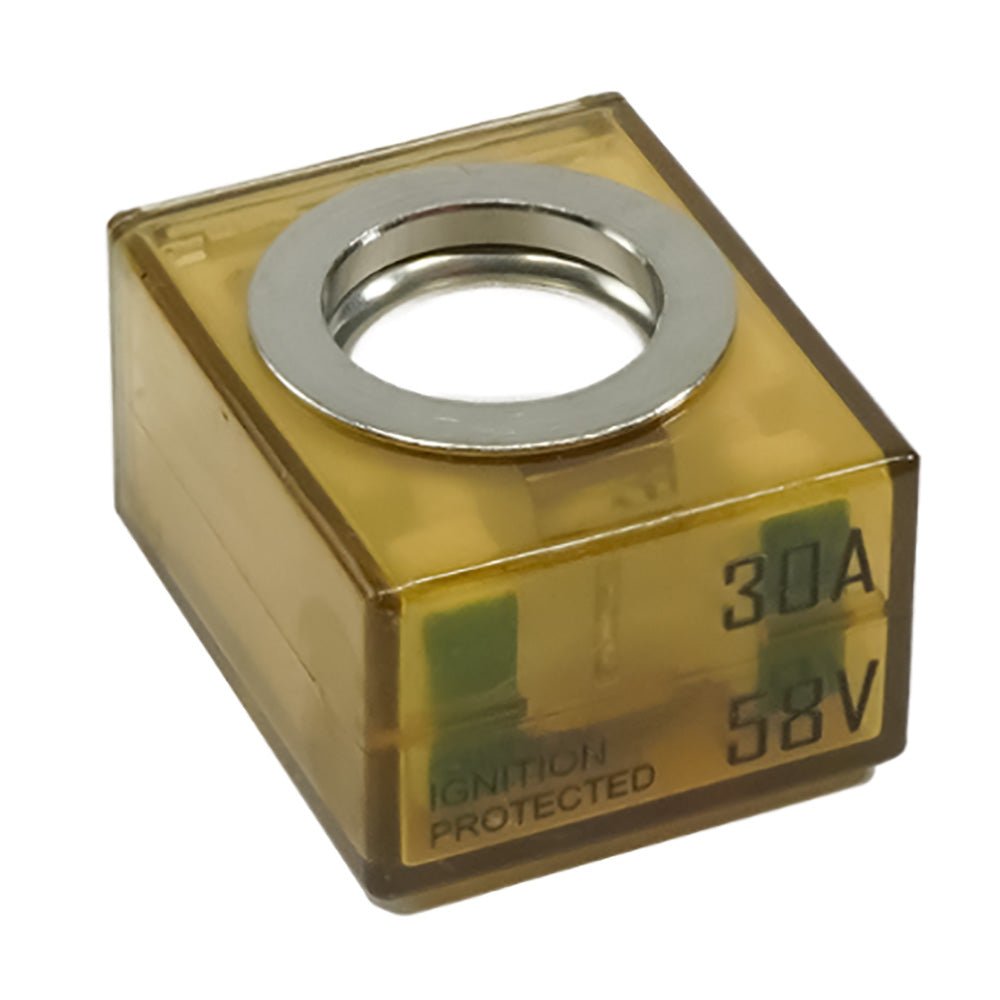

Egis MRBF Terminal Fuse - 30 Amp [3603-030]
MRBF Terminal Fuse - 30 Amp
- Transparent easy visual of fuse status
- Ignition-protected SAE/J1171-ISO8846
- High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
- Color-coded for easy ID of amperage rating
Features:
- Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
- High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
- Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
- Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 58 Vdc Rating: easily supports 12 to 48V nominal applications.
- High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
- Continuous Current (Amps): 30
- Max Voltage (VDC): 58
- Interrupt Rating @ 14 VDC (Amps): 10,000
- Interrupt Rating @ 48Vdc (Amps): 5,000
- Interrupt Rating @ 58Vdc (Amps): 2,000
- Ingress Protection: IP66
Specifications:
- Amperage: 30a
- Fuse Type: Terminal
- Type: Fuses
- Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs
- UPC: 850053879548
