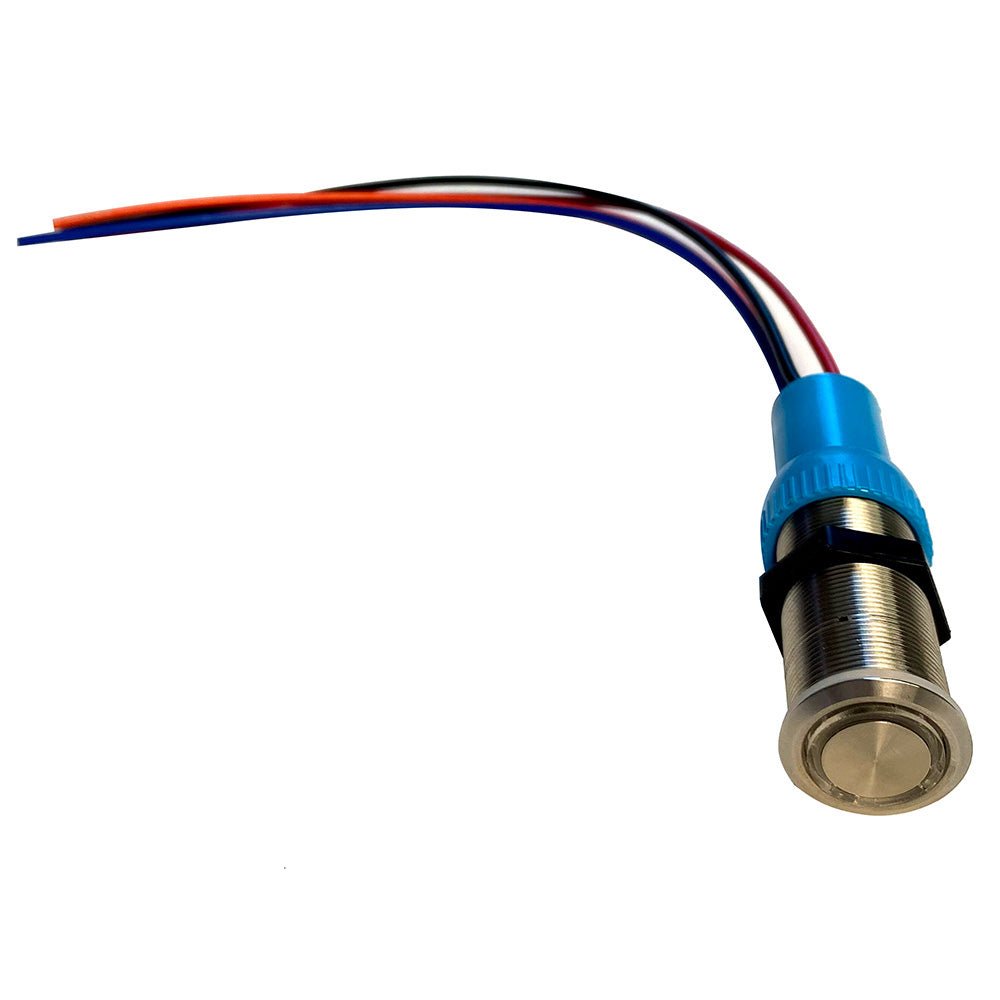

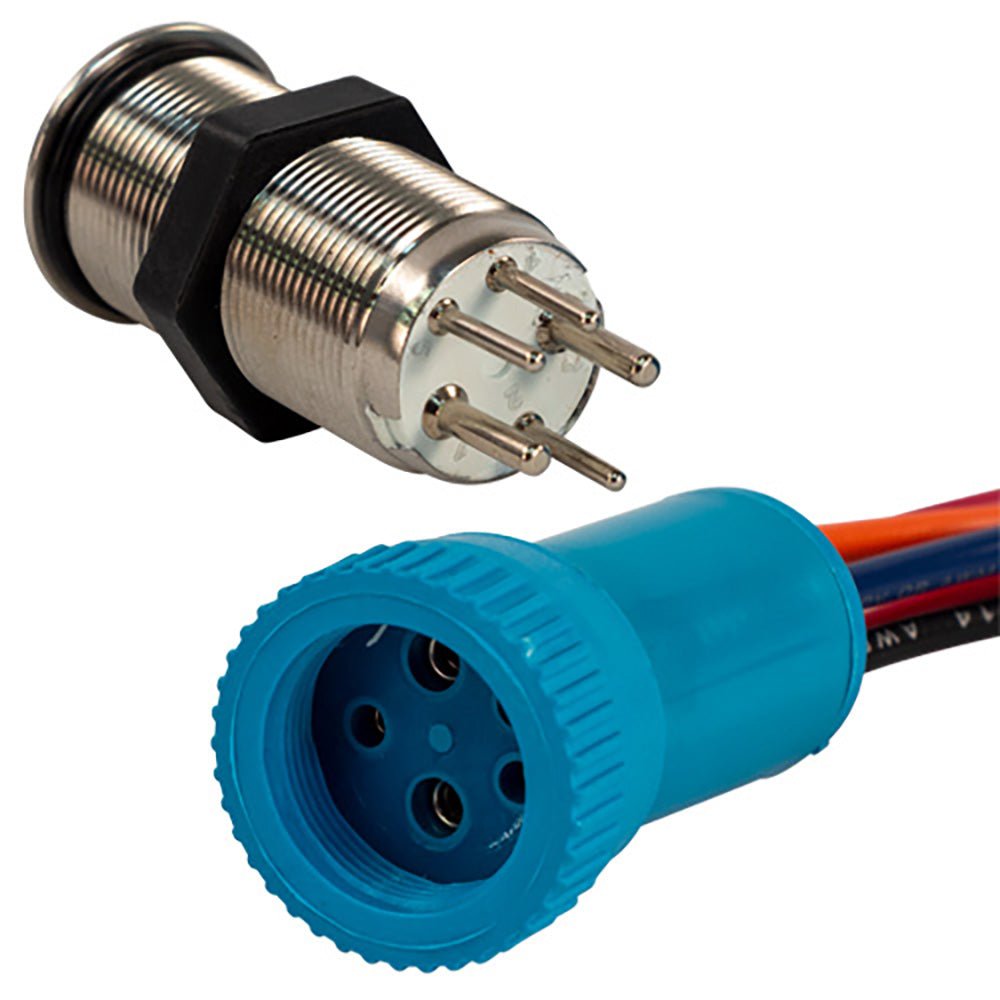

Bluewater 19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4' Lead [9057-2123-4]
- Regular price $69.00
-
-%
19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4' LeadThis stainless-steel plated metal button can...
Couldn't load pickup availability
Vendor: Bluewater
Type: Switches & Accessories
Sku: CWR-103074
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Bluewater 19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4' Lead [9057-2123-4]
$69.00
19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4' Lead
This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an “Off/(On)/(On)" double momentary contact.
The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.
Features:
- 4 ft. lead
Specifications:
- Function: Off-(On)-(On) (double momentary contact)
- Off/On: Blue/green
- 2nd On: Red
- Rear Mark Page: Green dot with a line
- Switch Rating: 15A/12 – 24VDC
- Material: Stainless steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
Installation
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.
Specifications:
- Action: OFF/(ON)/(ON)
- Color: Blue/Green/Red
- Box Dimensions: 1"H x 1"W x 1"L WT: 0.46 lbs
Quick Guide (pdf)
Brochure (pdf)
