Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A [7197]
- $18.99
-
Regular price
$30.99 -
-38%
Inform when this item available Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A [7197]
Couldn't load pickup availability
Vendor: Blue Sea Systems
Type: Circuit Breakers
Sku: CWR-64359
Rewards
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A [7197]

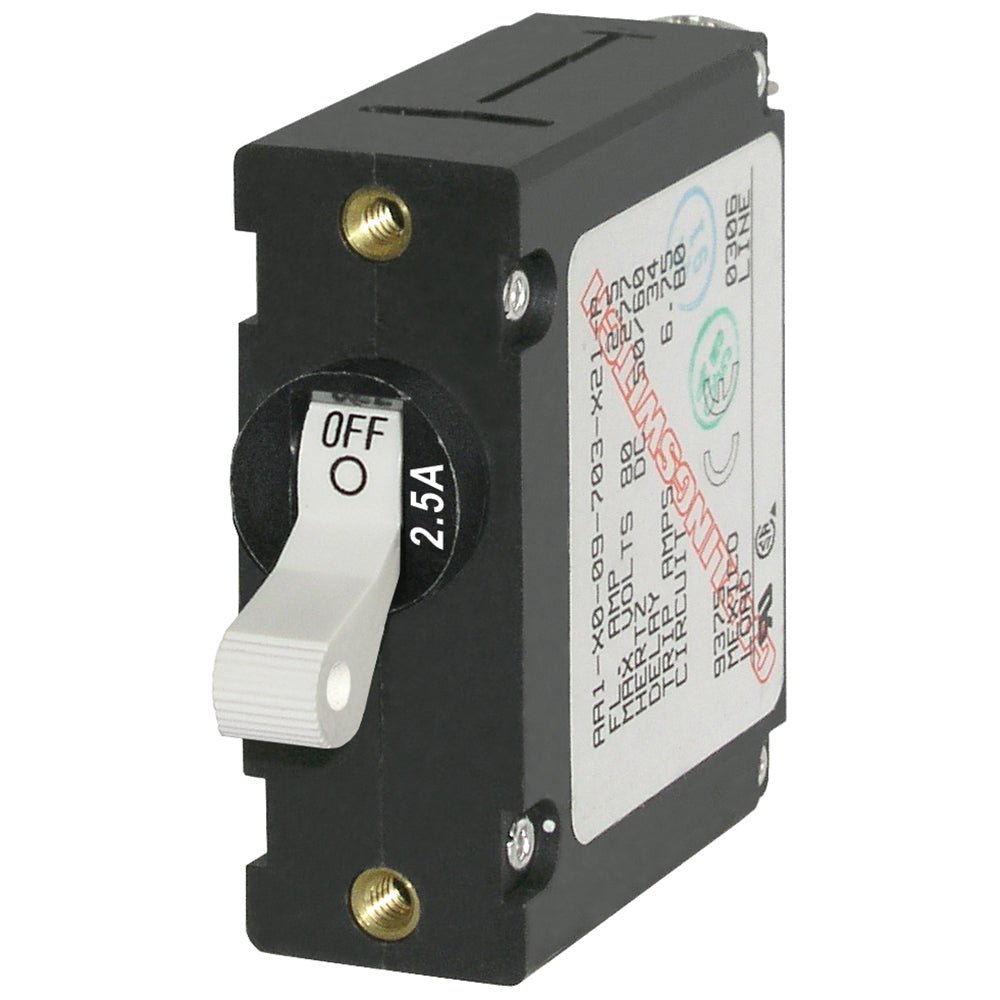

A-Series White Toggle Circuit Breaker - Single Pole 2.5A
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems" electrical panels
- Combines swtiching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications:
- Amperage: 2.5A AC / 2.5A DC
- Color: White
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 250V AC / 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.17lb (0.08 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 2.5a
- Box Dimensions: 1"H x 3"W x 5"L WT: 0.4 lbs
- UPC: 632085071974
