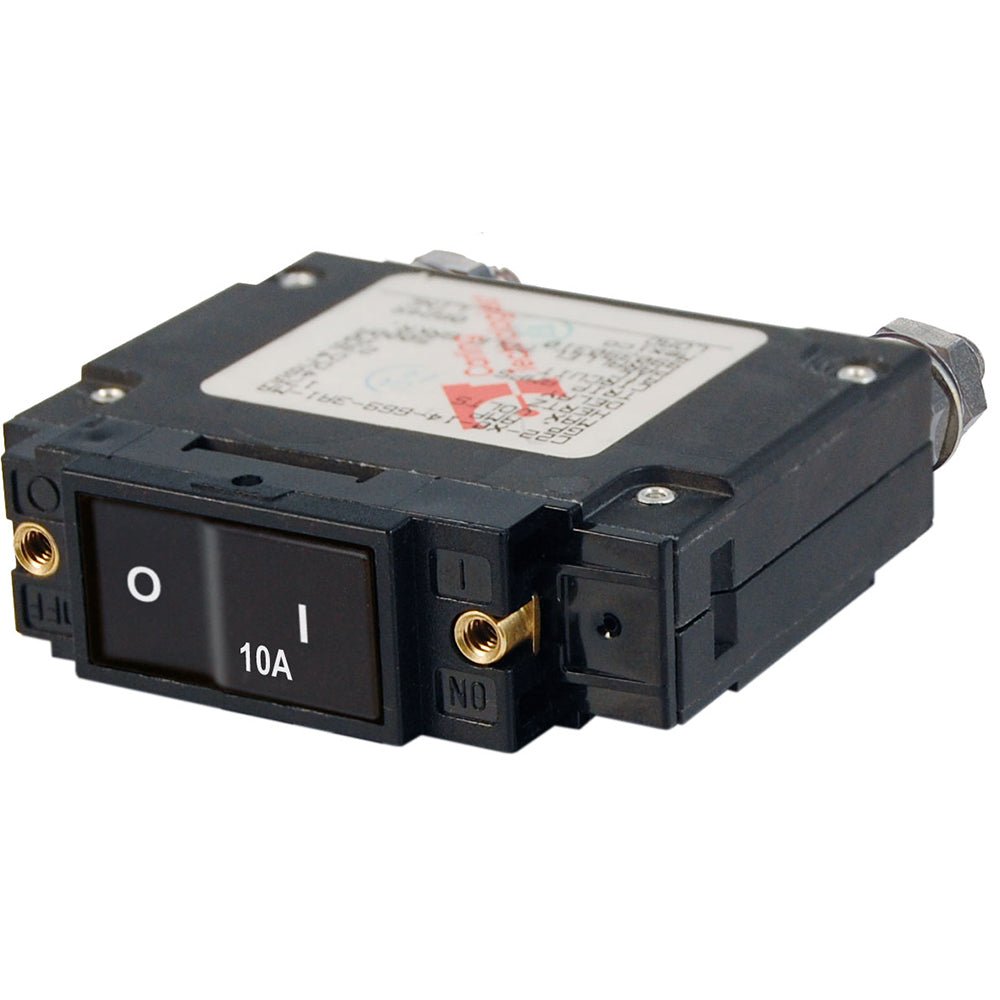

Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A [7541]
- $42.99
-
Regular price
$69.99 -
-38%
- 7 available
Inform when this item available Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A [7541]
Couldn't load pickup availability
Vendor: Blue Sea Systems
Type: Circuit Breakers
Sku: CWR-65281
Rewards
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A [7541]
C-Series Flat Rocker Circuit Breaker - Single Pole - 10A
Features:
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
- Ignition protectedsafe for installation aboard gasoline powered boats
Specifications:
- Amperage: 10A AC / 10A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC / 48V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Weight: 0.38lb (0.17 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 10a
- Box Dimensions: 1"H x 1"W x 12"L WT: 1 lbs
- UPC: 632085075415
