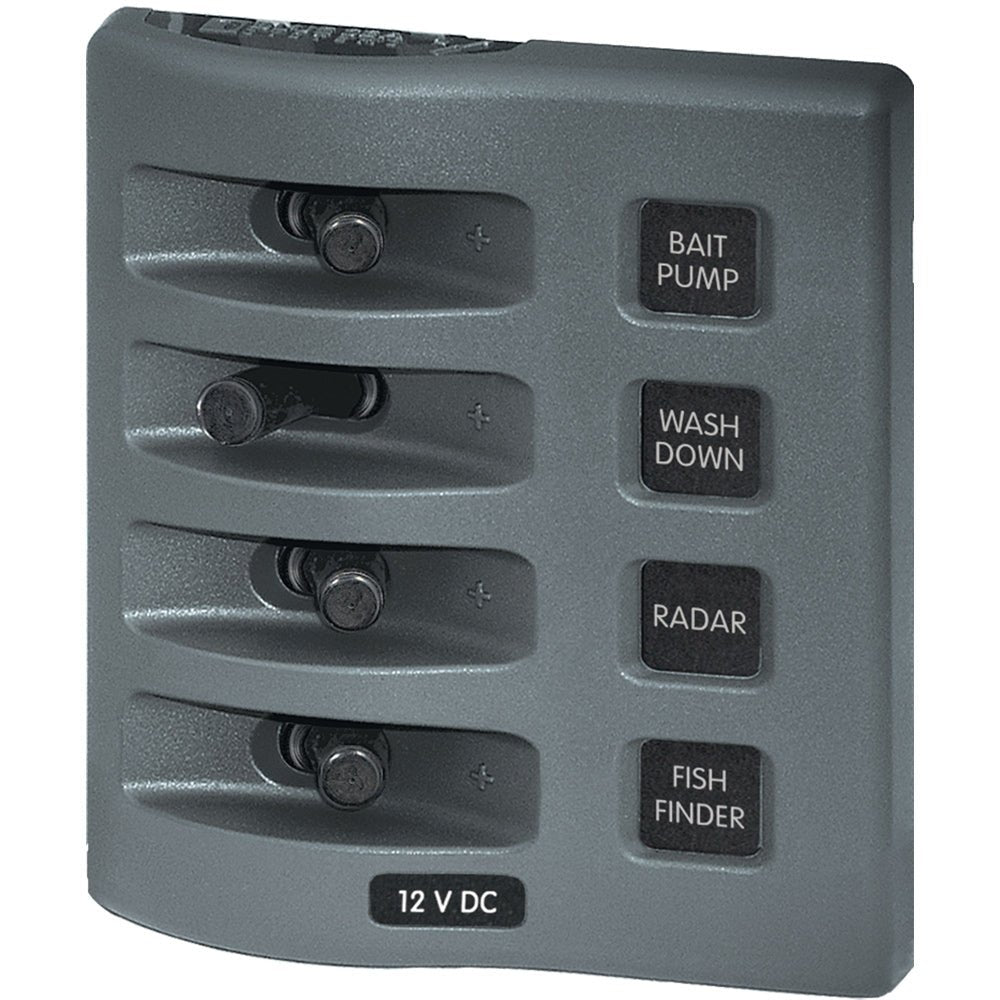

Blue Sea 4305 WeatherDeck 12V DC Waterproof Switch Panel - 4 Posistion [4305]

Save $17.58
SKU: CWR-51814

Price:
Sale price$53.99 Regular price$71.57

Description

WeatherDeck® 12V DC Waterproof Switch Panel - 4 Position

  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws


Weatherproof: Waterproof
Positions:t4
Nominal Voltage:t12V DC/24V DC
Circuit Protection:tNone
Maximum Amperage:t15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material:tReinforced Polycarbonate
Height:t4.30"(109.22 mm)
Widtht: 3.88"(98.55 mm)
Depth:t2.50"(63.5 mm)
Weight:t0.90lb (0.41 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Waterproof: Waterproof
  • AC/DC: DC
  • Max Breaker Quantity: 4
  • Voltage: 12/24v
  • Box Dimensions: 4"H x 6"W x 7"L WT: 0.7 lbs
  • UPC: 632085043056

Owner's Manual (pdf)
