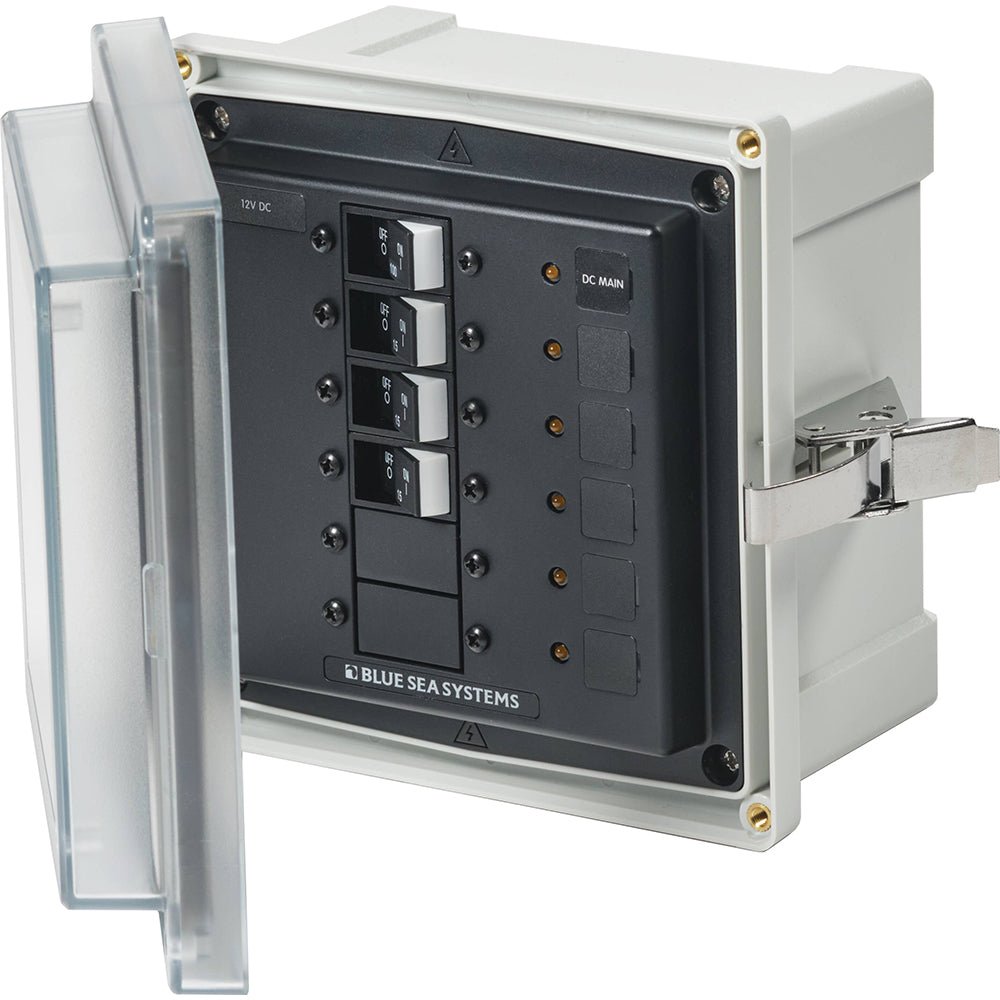

![Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC [3135] - Houseboatparts.com](http://houseboatparts.com/cdn/shop/files/94741XL-920981.jpg?v=1713390564&width=1400)
Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC [3135]
- $437.99
-
Regular price
$664.99 -
-34%
- 2 available
3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DCThe 3135-panel enclosure for DC circuit...
Couldn't load pickup availability
Vendor: Blue Sea Systems
Type: Electrical Panels
Sku: CWR-94741
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC [3135]
$437.99
3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DC
The 3135-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 6 x Amber ON indicating 12/24V DC
In the Box:
- 3135 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
Quick Guide (pdf)
Brochure (pdf)
