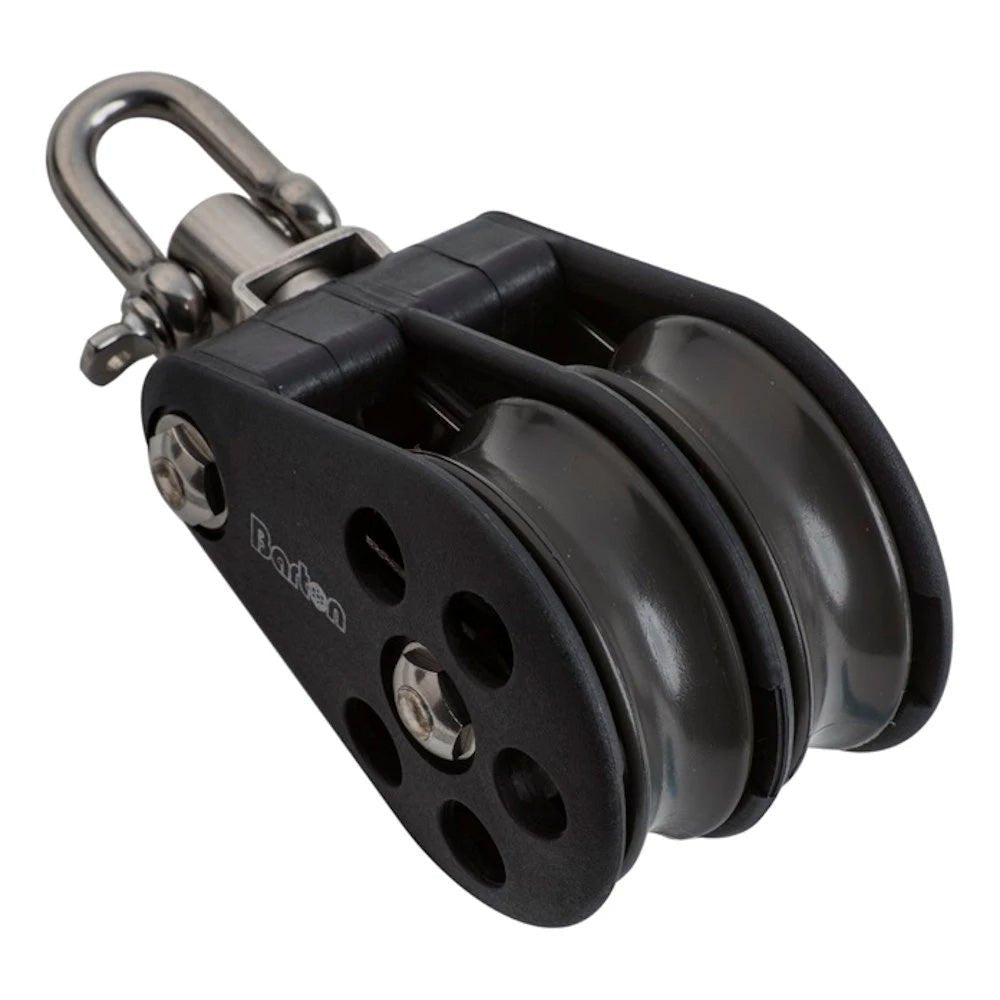

Barton Size 5 54mm Plain Bearing Pulley Block Double Block Swivel [N05230]
- $68.41
-
Regular price
$76.01 -
-9%
- 8 available
Size 5 54mm Plain Bearing Pulley Block Double Block & SwivelThe Size 5 Barton range of blocks has a 54mm...
Couldn't load pickup availability
Vendor: Barton Marine
Type: Blocks
Sku: CWR-111832
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Barton Size 5 54mm Plain Bearing Pulley Block Double Block Swivel [N05230]
$68.41
Size 5 54mm Plain Bearing Pulley Block Double Block & Swivel
The Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.
Suitable for up to 12mm 7/16" rope.
Specifications:
- Weight: 290 g
- Dimensions: 130 × 59 × 58 mm
- Size: 5 (54MM)
- Block Type: Swivel
- No. of Sheaves: Double
- Bearing Type: Plain
- Sheave Size: 54mm x 17mm (2 1/8" x 5/8")
- Max rope diameter: 12mm (7/16")
- SWL: 750kg (1650lbs)
- Break load: 1500kg (3300lbs)
- Max rolling load (ball bearing blocks): 525kg (1157lbs)
Quick Guide (pdf)
