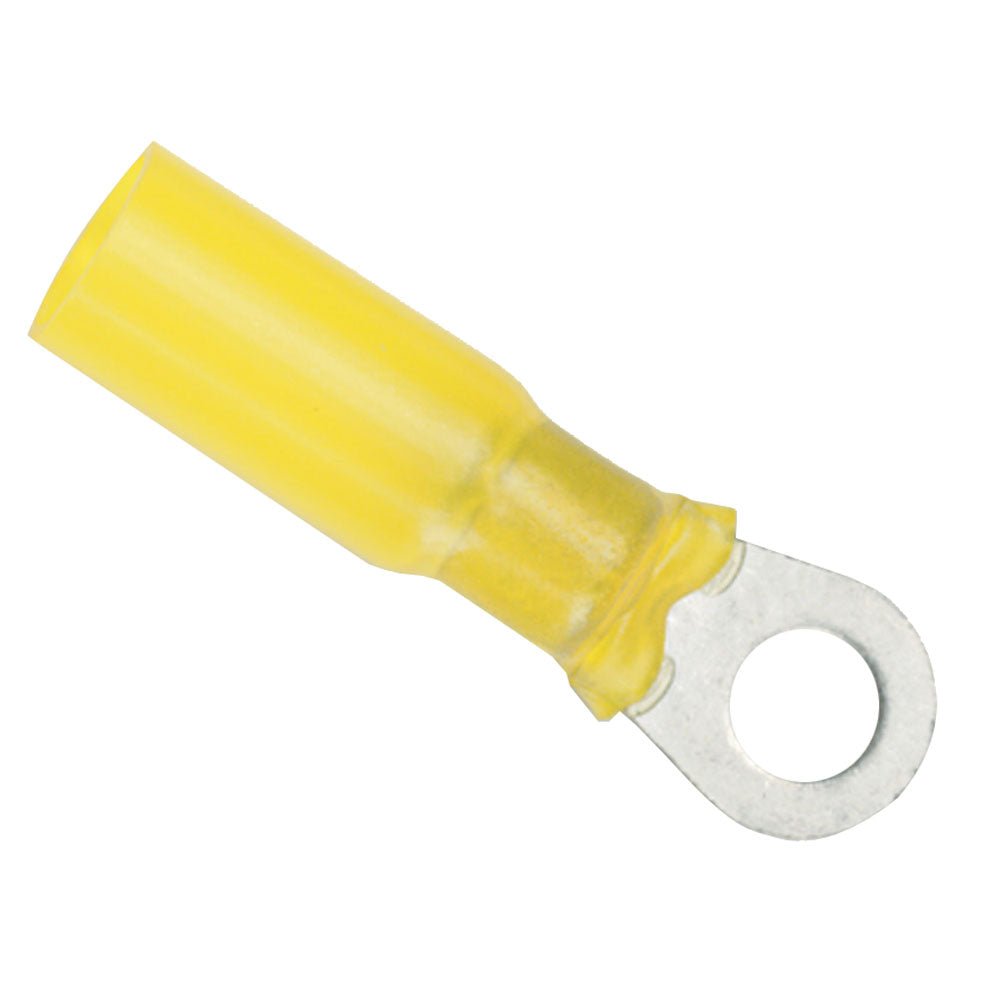

Ancor 12-10 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack [312299]

Save $19.14
SKU: CWR-42092

Price:
Sale price$49.99 Regular price$69.13

Description

12-10 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack

Gauge Size: 12-10
Screw Size: #8
Quanitity: 100

Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire Range: 12-10
  • mm: 3-5
  • WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Gauge: 12-10 AWG
    • Type: Ring Terminals
    • Package Qty: 100
    • Heat Shrink: Yes
    • Box Dimensions: 1"H x 3"W x 8"L WT: 0.4 lbs
    • UPC: 091887316063
