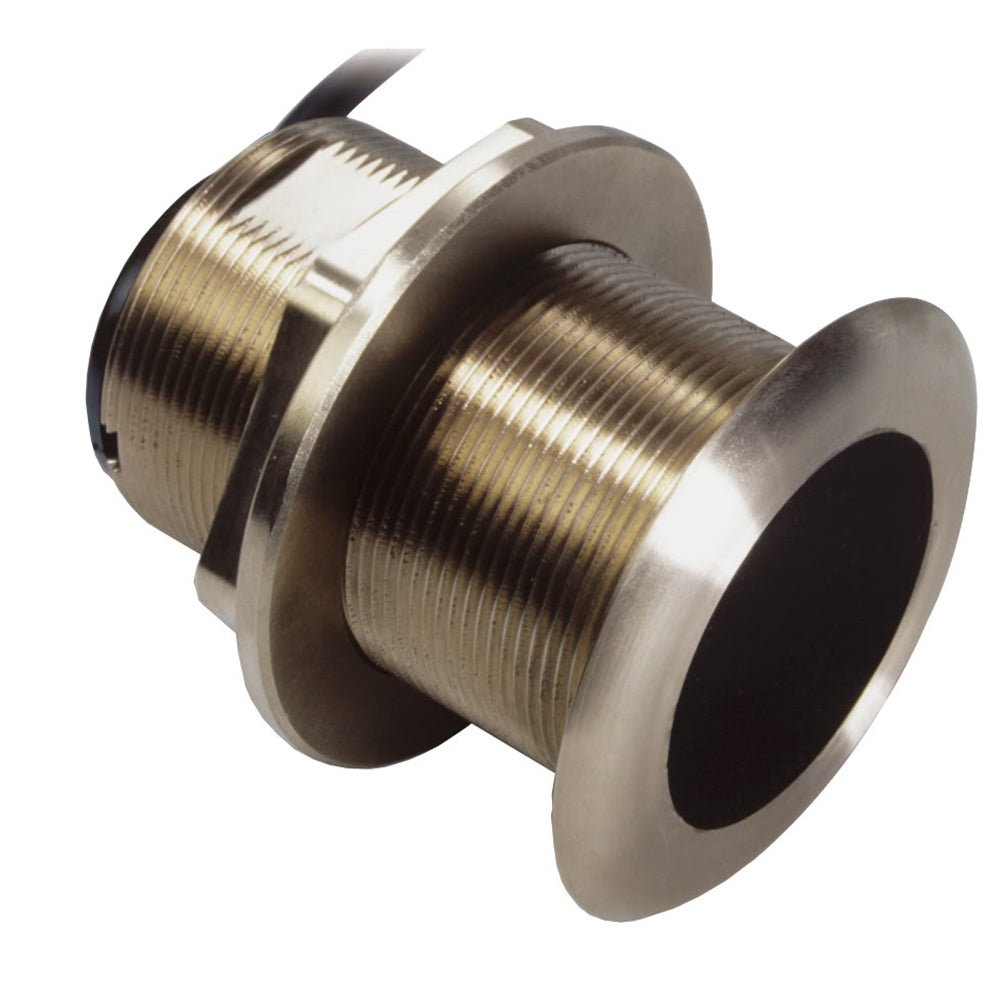

Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20 [B60-20-HB]
- $389.00
-
Regular price
$429.99 -
-9%
- 2 available
B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20ºThe bronze B60-20º provides a vertical beam without a fairing....
Couldn't load pickup availability
Vendor: Airmar
Type: Transducers
Sku: CWR-65252
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20 [B60-20-HB]
$389.00
B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º
The bronze B60-20º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- Boat Size: Up to 8 m (25')
- Bronze transducer housing
Specifications:
- Weight: 1.4 kg (3 lb)
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
Specifications:
- Temperature: Yes
- Mounting Style: Thru-Hull
- Pins: 7
- Box Dimensions: 1"H x 5"W x 8"L WT: 4.9 lbs
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
