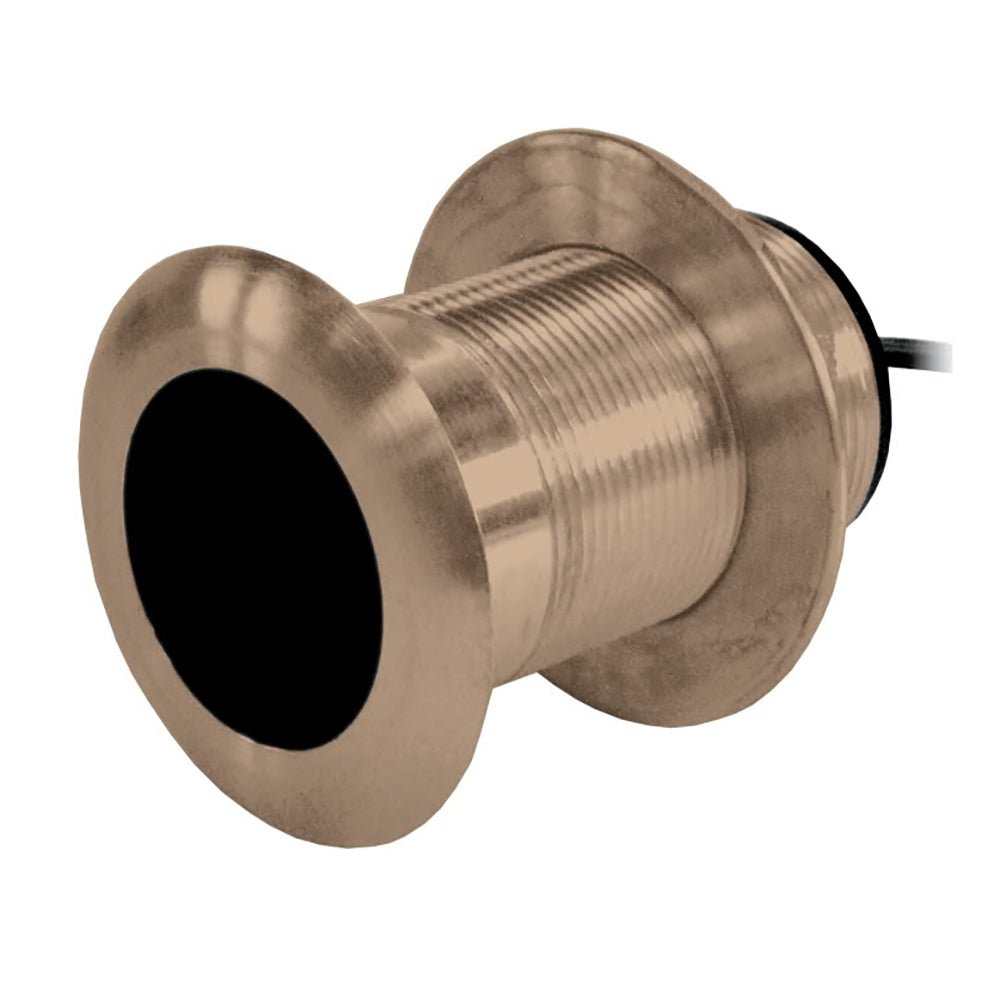

Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin [B117-DT-HB]
- $319.99
-
Regular price
$359.99 -
-11%
- Will be in stock after
B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-PinThe B117 features our 50/200 kHz, dual-frequency, single ceramic element in a...
Couldn't load pickup availability
Vendor: Airmar
Type: Transducers
Sku: CWR-65259
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin [B117-DT-HB]
$319.99
B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features
- Industry standard for low-profile transducers
- Depth and temperature
- Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Bronze transducer housing
- Boat Size: 8M (25') and up
Specifications:
- Weight: Bronze - 0.9 kg (2.0 lb)
- Hull Deadrise: Up to 8°
- Acoustic Window: Urethane
- Hole Diameter: 51mm (2")
Specifications:
- Mounting Style: Thru-Hull
- Temperature: Yes
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
