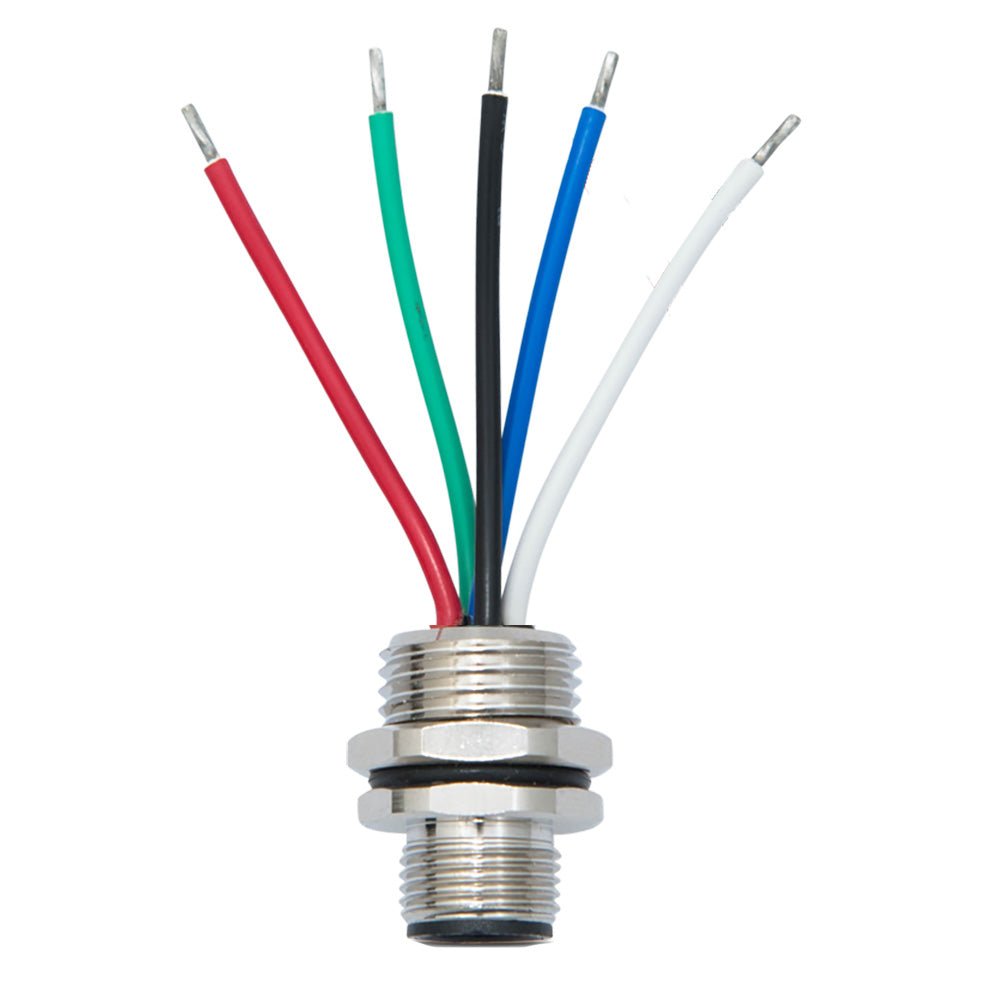

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male [A2K-PMW-M]
- $21.11
-
Regular price
$23.46 -
-10%
Rear Panel Mount NMEA2000 Wired Micro 5-Pin - MalePanel mount wired connectors available from Actisense allow NMEA 2000 installations through...
Couldn't load pickup availability
Vendor: Actisense
Type: NMEA Cables & Sensors
Sku: CWR-111822
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male [A2K-PMW-M]
$21.11
Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male
Panel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.
Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.
The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
Electrical
- Rated Current - 4A
- Rated Voltage - 60VDC
Mechanical
- Contacts - Brass, gold-plated
- Contact Carrier - Nylon & GF
- Contact Polarization - Standard M12-"A"-Polarization
- Mating Thread - M12
- Housing - Brass, nickel-plated
- Mounting Thread - PG9
- Mounting Nut - Brass, nickel plated - PG9
- Mounting Hole Diameter - 15.3mm
- Wires - 18 AWG (stripped and tinned)
- Wire Jacket - PVC
- Weight - 20g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -25°C to +90°C
- Connector Specification - Meets IEC61076-2-101
Specifications:
- Connection Gender: Male
- Data Interface: NMEA 2000
- Box Dimensions: 1"H x 4"W x 6"L WT: 0.05 lbs
- UPC: 5060998710164
