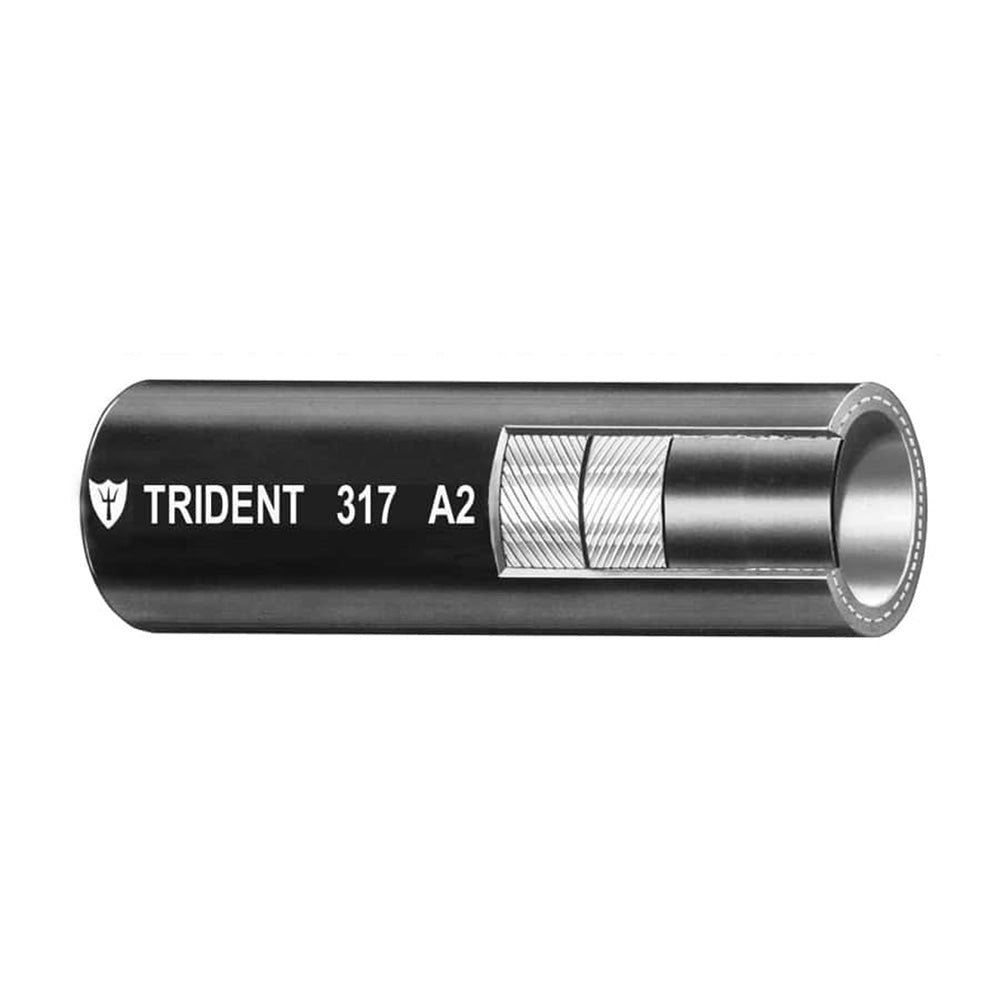

Trident Marine 5/8" x 50 Boxed Type A2 Fuel Vent Line Hose - Black [317-0586]
$185.99
5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose - Black
Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.
Features:
- Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
- Also provides excellent bend-ability
- NMMA Type Accepted & CE certified
Application:
- Fuel Hose for vent and diesel distribution
- For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel
Construction:
- Tube: Nylon Internal Barrier, NBR
- Cover: NBR/PVC Blend
- Reinforcement: Polyester 2 spiral
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
- Length: 50 ft. (15 m) Boxed
Specifications:
- Inner Diameter: (inch) 5/8" / (mm) 15.9
- Outer Diameter: (inch) 0.960 / (mm) 24.4
- Burst Pressure: (psi) 200 / (mpa) 1.38
- Working Pressure: (psi) 50 / (mpa) 0.34
- Bend Radius: (inch) 3" / (mm) 76.2
- Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72
*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2
Specifications:
- ID Diameter (inches): 5/8"
- Length (Feet): 50'
- Box Dimensions: 5"H x 18"W x 18"L WT: 13.5 lbs
- UPC: 704917009001
