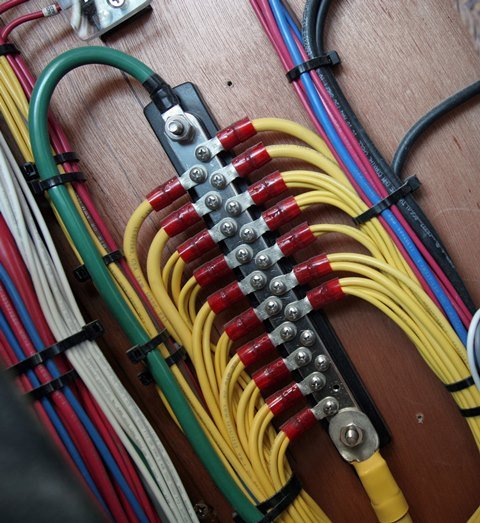

Common BusBar - 20 Gang - 150A
- Regular price $18.99
-
-%
The industry standard busbar for positive distribution The industry standard busbar for the collection of negative or AC ground circuits...
Couldn't load pickup availability
Vendor: Houseboatparts.com
Type: Electrical
Sku: 13-405
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Common BusBar - 20 Gang - 150A
$18.99
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
- Maximum Voltage 300V AC / 48V DC
- Number of Screw Terminals: 20
- Number of Terminal Studs: 2
- Terminal Type: 1/4" Stud / #8-32 Screw
- Continuous Rating: 130A AC / 150A DC
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Screw Terminal Torque: 15 in-lb (1.69 Nm)
- Stud Torque: 60 in-lb (6.78 Nm)
- Weight: 0.53lb (0.24 kg)
