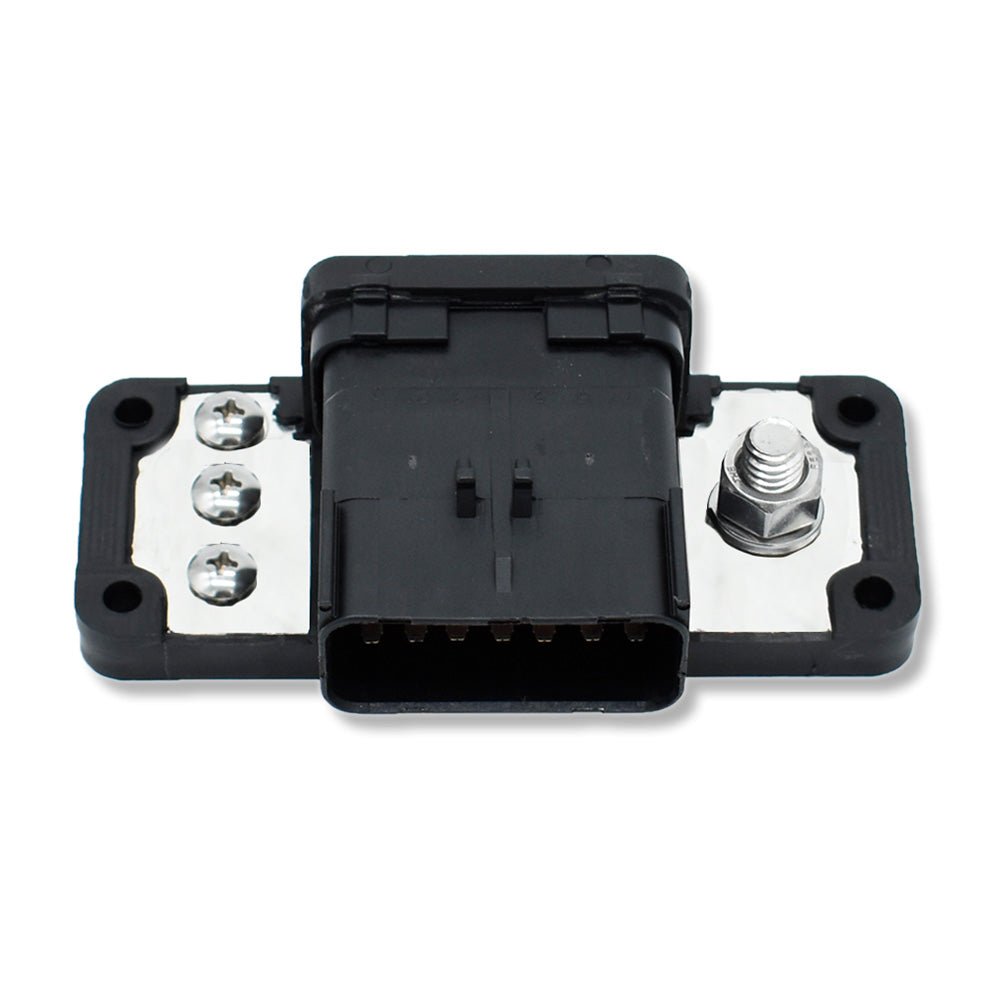

Bluewater 14 Position FCI Busbar 3 Screw 1 Post [2314-B-001]
- Regular price $38.89
-
-%
- 6 available
14 Position FCI Busbar 3 Screw 1 PostDesigned for use with FCI connectors, this sealed busbar supports modular, secure electrical connections...
Couldn't load pickup availability
Vendor: Bluewater
Type: Busbars, Connectors & Insulators
Sku: CWR-110885
Rewards
Join to earn 84 points from this item
Free shipping
Secure payment
2 Year Warranty
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
Care Guide
Hand-wash warm. Tumble dry low. This product has been washed at the factory after sewing to minimize fabric shrinkage.
Guarantee safe checkout
Bluewater 14 Position FCI Busbar 3 Screw 1 Post [2314-B-001]
$38.89
14 Position FCI Busbar 3 Screw 1 Post
Designed for use with FCI connectors, this sealed busbar supports modular, secure electrical connections in harsh environments. It’s ideal for marine, heavy equipment, or mobile installations where vibration and water ingress are concerns.
The FCI busbar provides excellent corrosion resistance and maintains stable conductivity even under constant exposure to moisture and salt spray. Its rugged construction minimizes maintenance and ensures long-term reliability.
Compact and easy to install, the FCI busbar streamlines wiring while protecting critical power circuits in demanding applications.
Specifications:
- Current Rating: 150A@ 48V DC
- Number of Positions: Male 14 Positions
- Wire Gage Range: 20 AWG to 12 AWG
- Terminal Size: 2.8 mm
- Housing Material: Polyamide (PA)
- Sealing Protection: IP68
- Temperature Rating of Material: -40°C to+ 125°C
- Input Connector: Male 54201415
- Mate Connector: Female 54201411
- Plate: 2mm thick Copper with tin-plated
- Stud: Stainless Steel 3/8"
- Base: RETPU Overmolded
- Mounting Holes (4): 0 0.20"
Quick Guide (pdf)
